Residential Series IP Intercom Monitor (White)

Brand logo
SKU INTIPMONGW
Brand logo

Residential Series IP Intercom Monitor (White)

SKU INTIPMONGW

Stock may be limited. Please contact us for availability or for an alternative item.

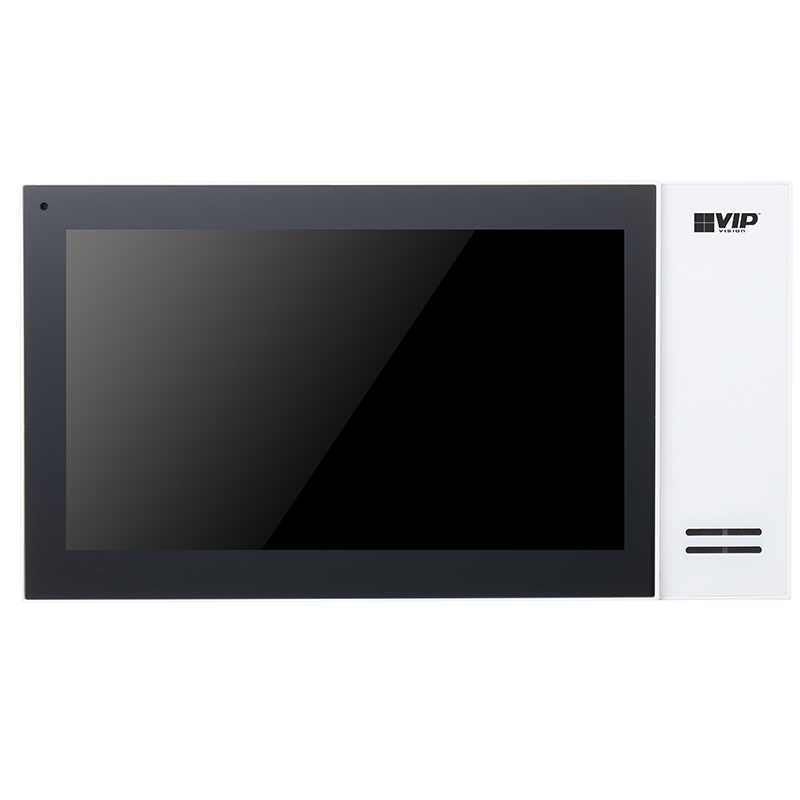

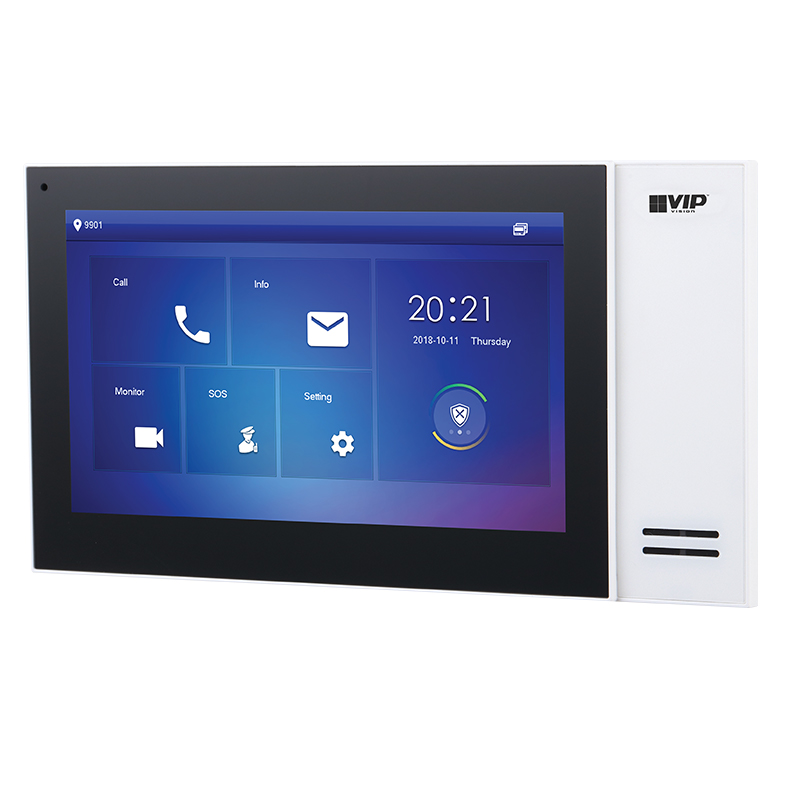

The INTIPMONGW is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.

Product features:
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• 7" TFT capacitive touch screen
• Power over Ethernet (12VDC, 802.3af)
• MicroSD storage (up to 32GB)

Suggested Products

Suggested product image
Residential PoE IP Intercom Door Station
INTIPRDSG
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPMONGW / INTIPMONGB Datasheet (PDF) 0.30 MB
Residential G Series Intercoms Datasheet (PDF) 1.06 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeH_20220111 17.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker (1.5W)
Bidirectional Talk
Support
Display Size
7" Colour TFT LCD
Display Resolution
1024 x 600
Alarm Support
Yes; 6 Input channels / 1 output channel
Operational Input
Touchscreen
Internal Capacity
Built-in 8GB, MicroSD slot up to 32GB
Ethernet
10M/100Mbps adaptive
Network Protocol
TCP/IP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface
Power Input
PoE 12VDC 1A
Power Consumption
Standby < 4W / Operation <6W

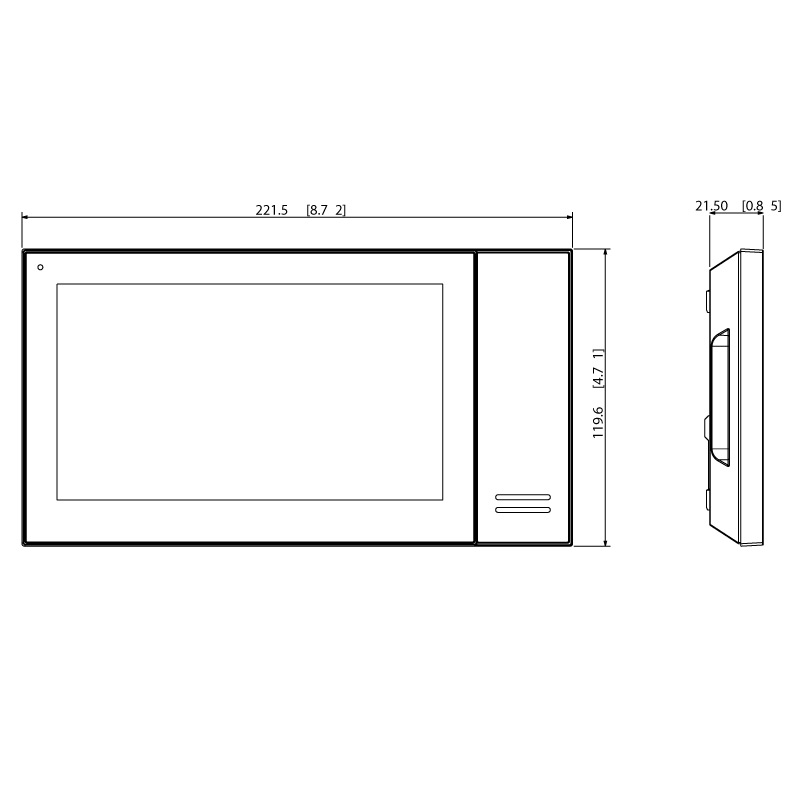

Dimensions
120 x 222 x 22mm
Weight
0.35kg
Other
Series
G Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
222 mm
Height
120 mm
Depth
22 mm
Weight
0.35 kg
