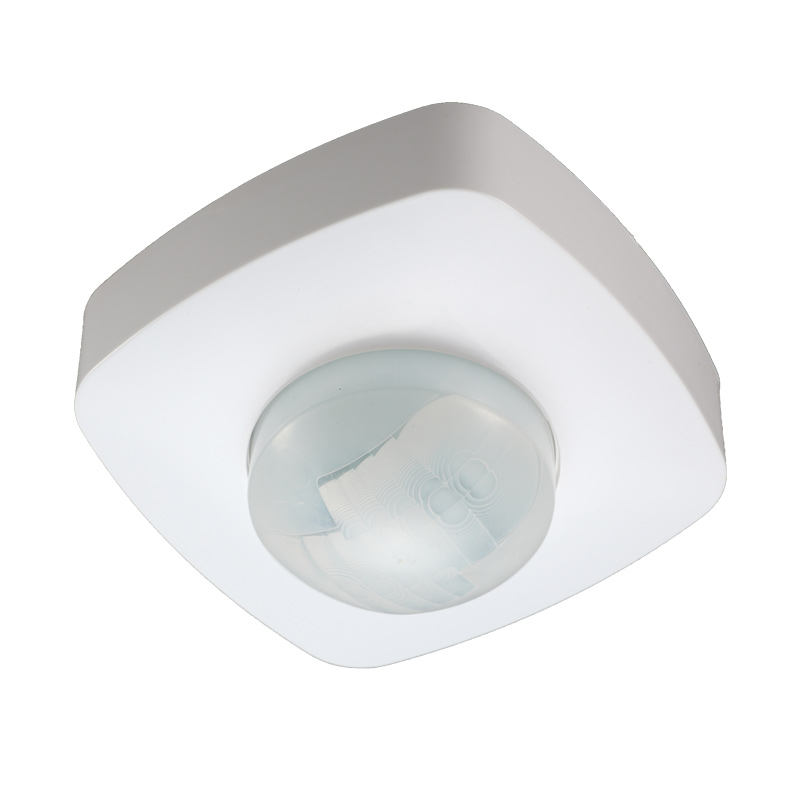

Ceiling Mount PIR Sensor Motion Activated Switch (Corridor)

Brand logo
SKU ENSA-PS2
Brand logo

Ceiling Mount PIR Sensor Motion Activated Switch (Corridor)

SKU ENSA-PS2

Available by special order only. Please contact us for lead times.

The ENSA-PS2 is an intelligent sensor switch, designed for indoors ceiling mounting. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:
• Automatically activate and deactivate lighting for energy efficiency
• Adjustable sensors: Daylight (3~2000lx) / Motion (4x20m square) / On-timer (10s~30min)
• 360° rectangle / 4m x 20m passive infrared detection
• Ceiling mount, for indoor use only
• 3 year warranty

Links and Downloads

Specifications

Features
Daylight Sensor
Yes
Motion Sensor Type
Passive Infrared
Electrical
Input Voltage
220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode)
0.4W
Max. Rated Load (Resistive/Inductive)
2000W / 1000W
Detection
Daylight Sensing
3 ~ 2000 Lux
Motion Detection Area
360° rectangle (4m x 20m)
Motion Detection Adjustment
N/A
Recommended Installation Height
4 ~ 10m
Motion Detection Speed
0.6 ~ 1.5m/s
On-timer Delay
10s / 30s / 90s / 5min / 10min / 30min
Stand-by Period
N/A
Stand-by Dimming
N/A
General
Ingress Protection
IP20
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Mounting Type
Ceiling
Dimensions
100 x 100 x 50mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
110 mm
Height
110 mm
Depth
70 mm
Weight
0.20 kg
