Microwave Sensor Motion Activated Switch

Brand logo
SKU ENSA-MS1
Brand logo

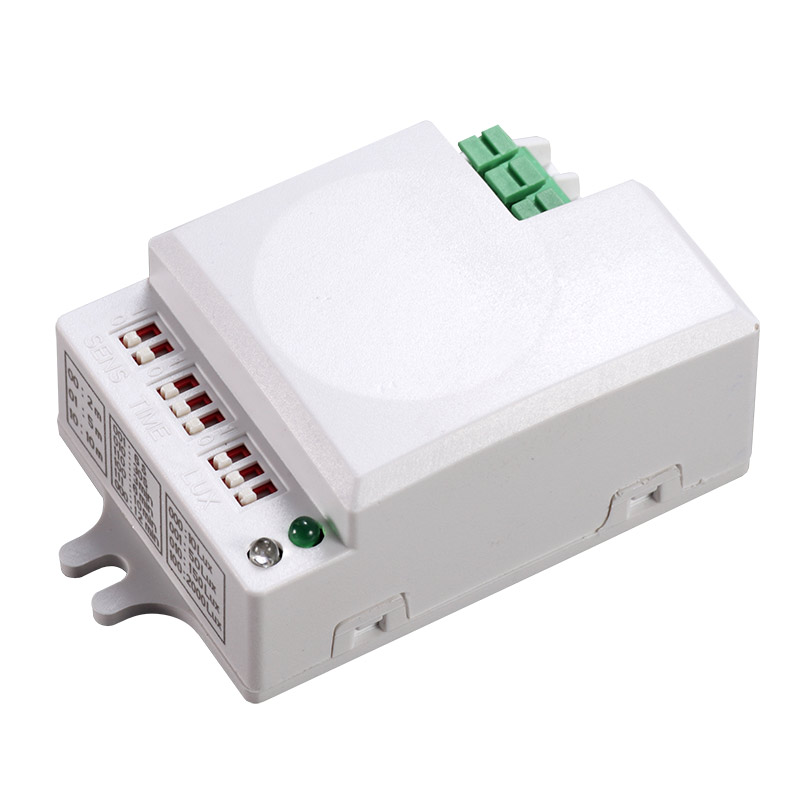

Microwave Sensor Motion Activated Switch

SKU ENSA-MS1

The ENSA-MS1 is a intelligent sensor switch, designed for in-line installation with existing lighting. Its compact design and microwave sensor allow it to be installed directly inside of lighting for discreet energy saving applications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:
• Automatically activate and deactivate lighting for energy efficiency

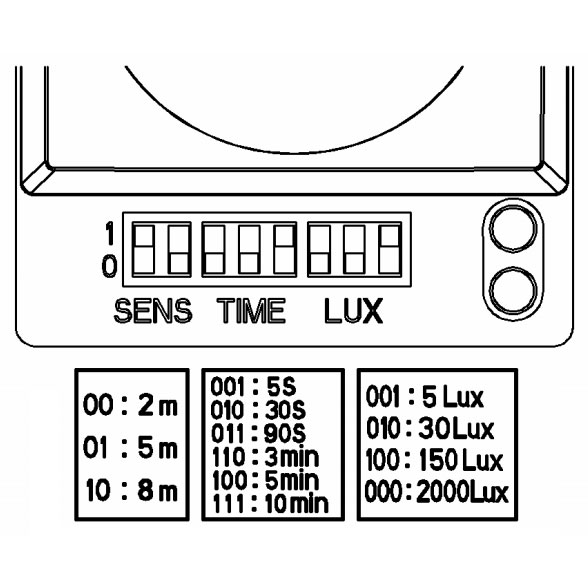

• Adjustable sensors: Daylight (5~2000lx) / Motion (2~8m) / On-timer (5s~10min)
• 360° circle / Ø2 ~ 8m microwave detection
• Designed for in-line installation with lighting, for indoor use only
• 3 year warranty

Links and Downloads

Specifications

Features
Daylight Sensor
Yes
Motion Sensor Type
Microwave
Electrical
Input Voltage
220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode)
0.9W
Max. Rated Load (Resistive/Inductive)
500W / 200W
Detection
Daylight Sensing
3 ~ 2000 Lux
Motion Detection Area
360° circle (Ø2 ~ 8m adjustable)
Motion Detection Adjustment
100% / 60% / 25%
Recommended Installation Height
1.8 ~ 3.5m
Motion Detection Speed
0.6 ~ 1.5m/s
On-timer Delay
5s / 30s / 90s / 3min / 5min / 10min
Stand-by Period
N/A
Stand-by Dimming
N/A
General
Ingress Protection
N/A (Indoor use only)
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Mounting Type
In-line
Dimensions
40 x 60 x 25mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
50 mm
Height
110 mm
Depth
30 mm
Weight
0.06 kg
