Mini Surface Mount Reed Switch

Brand logo
SKU DSRLW
Brand logo

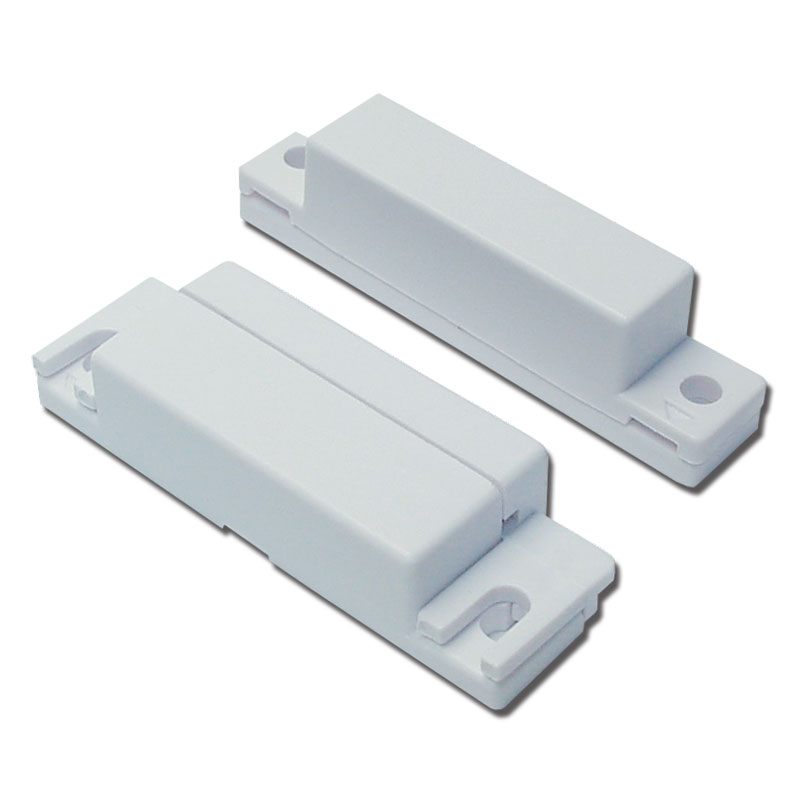

Mini Surface Mount Reed Switch

SKU DSRLW

Compact, surface mount reed switch for use with hardwired alarm systems on doors and windows.

Product features:
• Compact size for discreet installation
• Normally open (N.O) reed switch when at rest
• Closed loop when near magnet; open loop when away from magnet
• 16mm operating distance
• 100VDC 500mA
• 63mm x 12mm x 20mm (magnet 63mm x 12m x 11mm)

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Properties
Switch Type
Normally Open (N.O)
Magnet Near
Closed Circuit
Magnet Away
Open Circuit
Magnet-Sensor Gap - Maximum
16mm
Contact Rating - Maximum
100VDC 500mA
General
Mount
Surface
Dimensions
63mm x 12mm x 20mm (magnet 63mm x 12m x 11mm)
Material
Plastic
Type
Reed Switch
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
40 mm
Height
70 mm
Depth
20 mm
Weight
0.02 kg
