Roller Shutter Reed Switch

Brand logo
SKU DRSR
Brand logo

Roller Shutter Reed Switch

SKU DRSR

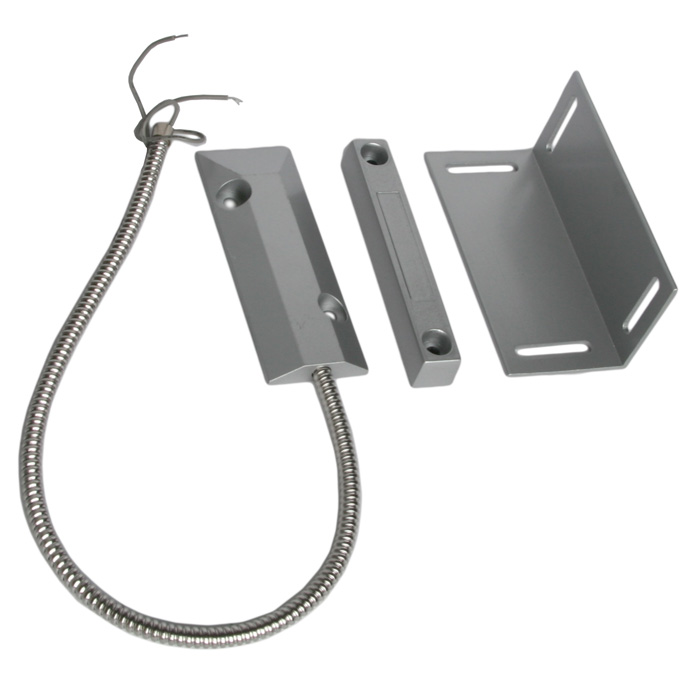

Heavy duty cast housing roller shutter door reed switch with termination contacts inside secure stainless steel conduit.

Product features:
• Heavy duty zinc alloy construction
• Normally open (N.O) reed switch when at rest
• Closed loop when near magnet; open loop when away from magnet
• 50mm operating distance
• 100VDC 500mA
• Stainless steel termination conduit
• 106mm x 38mm x 10mm

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Properties
Switch Type
Normally Open (N.O)
Magnet Near
Closed Circuit
Magnet Away
Open Circuit
Magnet-Sensor Gap - Maximum
50mm
Contact Rating - Maximum
100VDC 500mA
General
Mount
Surface
Dimensions
106mm x 38mm x 10mm
Material
Zinc Alloy
Type
Reed Switch
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
160 mm
Depth
60 mm
Weight
0.21 kg
