Professional Series 4 Channel 1080p HDCVI Digital Video Recorder

Brand logo
SKU CVR4V6
Brand logo

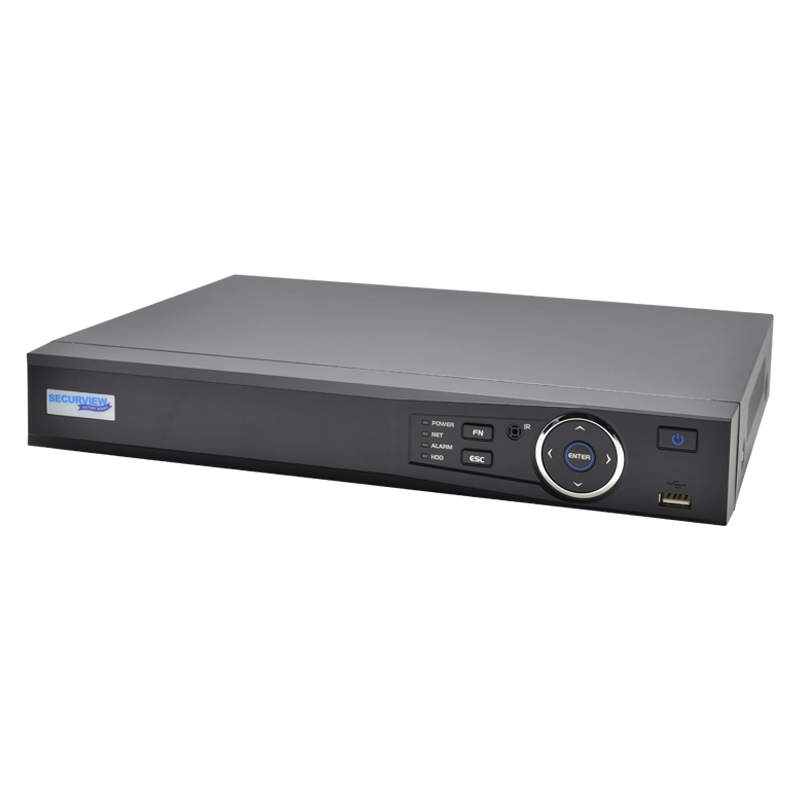

Professional Series 4 Channel 1080p HDCVI Digital Video Recorder

SKU CVR4V6

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR4V6 is a 4 channel HDCVI DVR capable of 1080p full HD recording over coaxial cable. It offers 5 times the image resolution of standard D1 analogue surveillance and features support for other popular HD over coax technologies, analogue & IP video inputs.

Product features:
• High cross compatibility ~ with HDCVI, HDTVI, IP, Analogue and AHD cameras
• Records up to 2.0MP/1080p at 15fps (HDCVI, HDTVI, AHD) and 960H at 25fps (analogue)
• Maximum 24Mbps incoming bandwidth (IP video inputs)
• Up to 300m transmission distance (1080p)
• 1 x SATA port up to 10TB, max. 10TB HDD capacity
• Configure remote view in seconds via QR code
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone

Suggested Products

Suggested product image
Professional Series 16 Channel 1080p HDCVI Digital Video Recorder
CVR16V6
Suggested product image
Professional Series 8 Channel 1080p HDCVI Digital Video Recorder
CVR8V6
Suggested product image
19" Acer 1366 x 768 LCD Monitor (TN)
LCDACER19
Suggested product image
6RU 450mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-450W
Suggested product image
1500VA Line-Interactive Tower UPS - 900W
UPS1500VA
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS

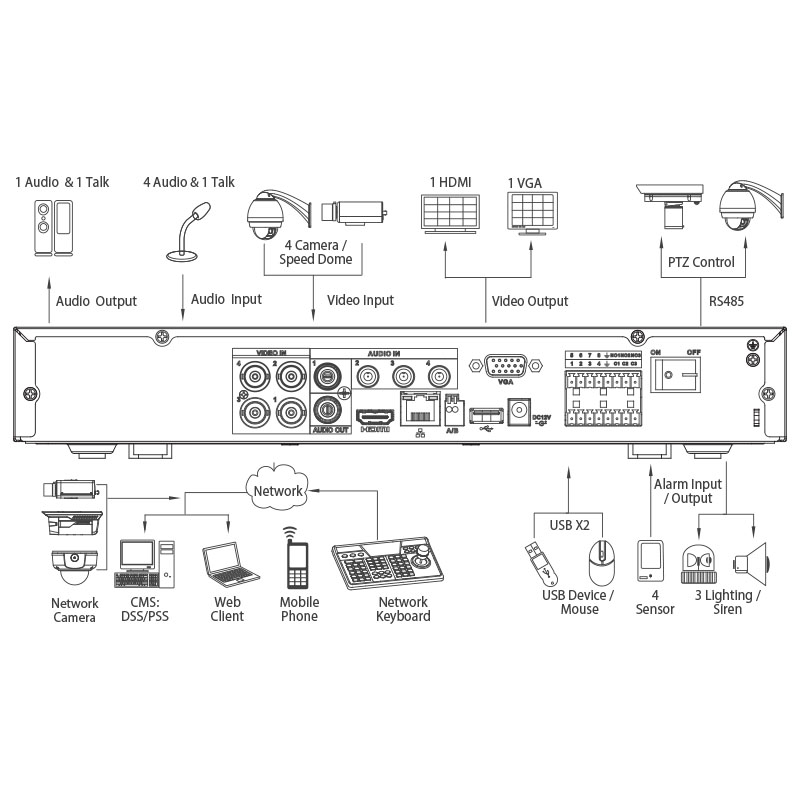

Video Input
4 channel BNC
Audio In/Out
4 / 1
Two-way Talk
Reuse channel 1 audio input / output RCA
Internal HDD
1 x SATA port up to 10TB, max. 10TB HDD capacity
USB Interface
2 ports: USB2.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC/2A
Power Consumption
<10W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH / 86~106kpa
Dimensions

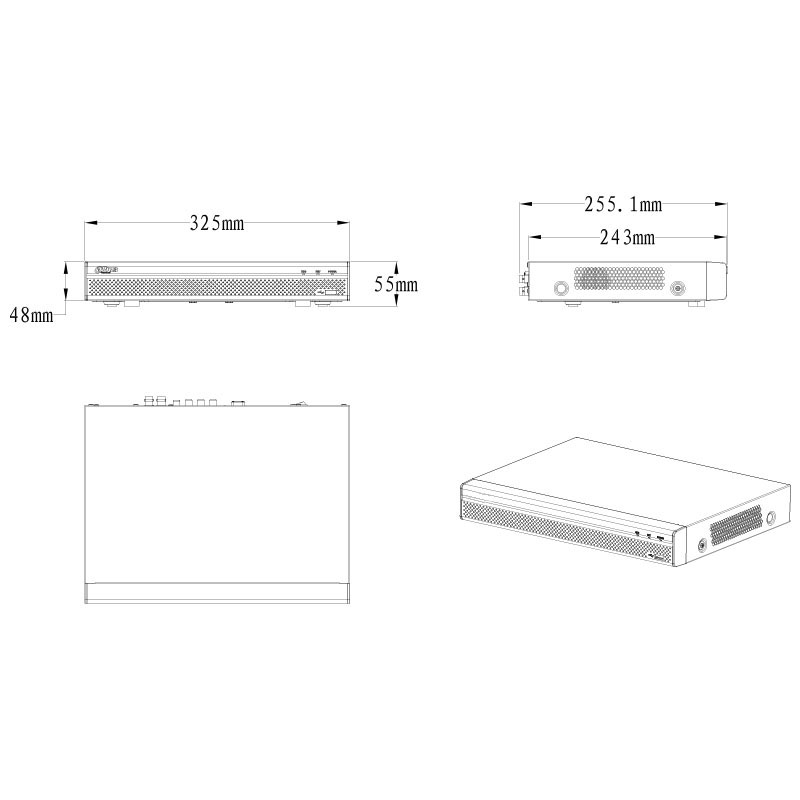

325mm x 255mm x 55mm (1U)
Rackmountable
Rackmount Unit
Weight
1.5kg (without HDD)
Cross Compatibility
Supported Video Inputs
Coax Input Support
IP Input Support
IP Input Max. Resolution
IP Input Max. Bandwidth
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 6
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Frame Rate (Main)
1080p (1~15fps), 720p (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.264+ / H.264
Bit Rate
1~6144Kbps per channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
8 channel input / 3 relay output
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Playback Sync
1 / 4
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Face Detection
Backup Modes
USB Device / Internal SATA burner / Network
Network
Ethernet
1x RJ-45 port (10/100M)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices, Windows Phone
Other
Camera Configurations
Coaxial: 4 channels up to 1080p/15fps (HDCVI, HDTVI, AHD), 960H/25fps (analogue) / Network: Add 2 channels up to 5.0MP, Max 24Mbps Incoming Bandwidth
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
370 mm
Depth
310 mm
Weight
2.70 kg
