Watchguard Force Wireless Outdoor PIR Sensor

Brand logo
SKU ALL-PIR3
Brand logo

Watchguard Force Wireless Outdoor PIR Sensor

SKU ALL-PIR3

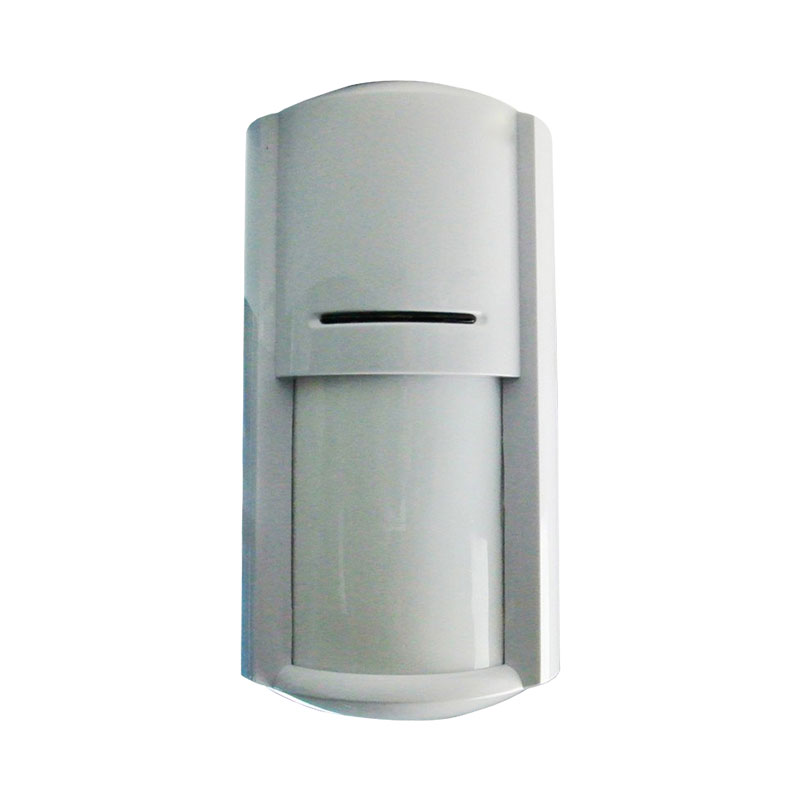

The ALL-PIR3 Wireless Outdoor PIR Sensor is an alarm built for outdoor environments with a wide angle detection range 12 x 12m, pet immunity and weather resistant housing.

Product Features:
• Dual element low noise pyroelectric IR sensor
• 12 x 12m detection range with 110° field of detection
• Pet immunity, up to 20kg
• Optical filter lens with white light immunity, up to 1000lx
• Adjustable microwave detection range
• Temperature auto compensation
• Weather resistant and insect proof housing
• Tamper switch for vandal protection
• 12VDC power supply
• Monitor and receive alerts to your phone with the Smart Life app

Links and Downloads

Watchguard Force ALL-PIR3 User Manual (PDF) 0.41 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Detection Range
12 x 12m range / 110° angle
Wireless Transmit Distance
<80m (open area)
Wireless RF Frequency
433MHz
Environment
Power Supply
12VDC
Standby Current
N/A
Alarm Current
<30mA 12VDC
Operating Environment
-40°C~70°C
Dimensions
153 x 80 x 58mm
Other
Microwave Antenna
Patch antenna by GaAs FET dielectric oscillator
Microwave Frequency
10.525Ghz
Pet Immunity
Yes, up to 20kg
Warm-up Time
<60 seconds
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
60 mm
Height
190 mm
Depth
90 mm
Weight
0.60 kg
