VIP Vision Access Control Battery Backup Cabinet

Brand logo
SKU AC-WSB
Brand logo

VIP Vision Access Control Battery Backup Cabinet

SKU AC-WSB

The VIP Vision Access Control Battery Backup Cabinet is a durable enclosure designed to securely house, monitor and provide backup power to the AC-WCM web controller in AC-W Series Professional Access Control.

The cabinet connects to the controller via RS-485 to report monitored events of the cabinet, including mains power loss, mains power recovery and tamper events. The cabinet also features an air circuit breaker for overload and short circuit protection.

• Galvanised steel cabinet construction with door lock
• Supports standard 12VDC 7A battery* for backup power
• Monitoring of main power loss, main power recovery, tamper (via RS-485 extension)
• Built-in air circuit breaker for overload and short-circuit protection
• 240VAC power input with 15VDC 4A output
• Surface-mount design with simple wall installation
*12VDC 7A backup battery not included

Suggested Products

Suggested product image
VIP Vision 2-Door Web Access Controller Module
AC-WCM
Suggested product image
12VDC 7Ah Sealed Lead Acid Battery
D12V7A

Links and Downloads

Access Control - VIP Vision Product Solution Guide (PDF) 7.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Battery Backup
12VDC 7Ah

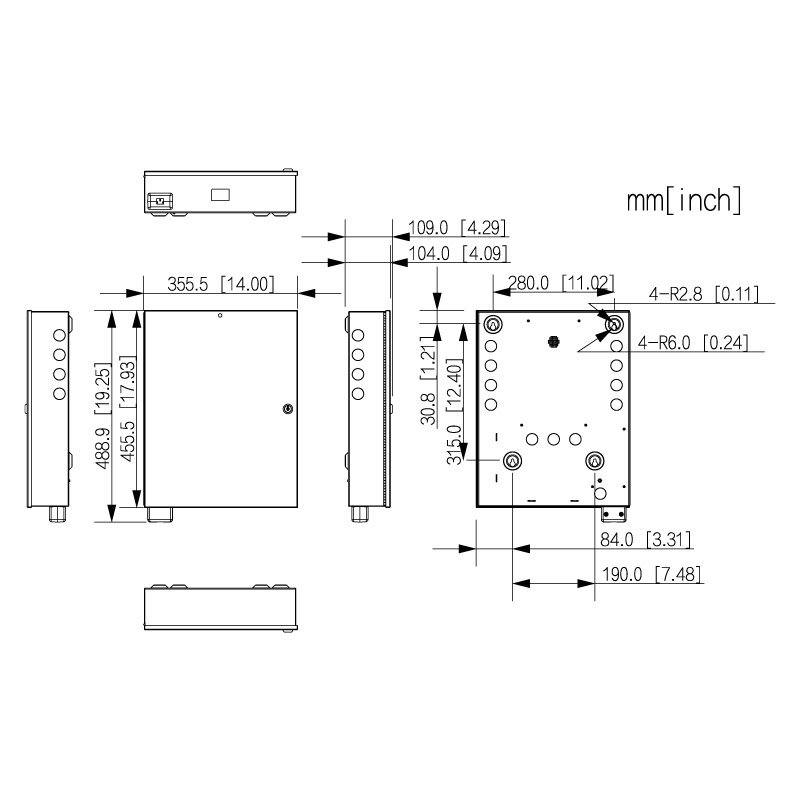

Dimensions
456 x 356 x 109mm
Event Reporting
Via RS-485 Extension: Main Power Failure, Main Power Recovery, Tamper
Features
12V7Ah Backup Battery Enclosure, Air Circuit Breaker, Firmware Update, Event Reporting, Anti-Tamper Output
Housing
Galvanised steel plate
Operating Conditions
Less than 95% RH / Indoors only
Power Input
100~240VAC ≤1.5A
Power Output
15VDC ≤4A
Weight
9.00kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
489 mm
Height
579 mm
Depth
203 mm
Weight
9.00 kg
