VIP Vision Access Control Card & Keypad Reader - Slimline 2

Brand logo
SKU AC-WRC-CK
Brand logo

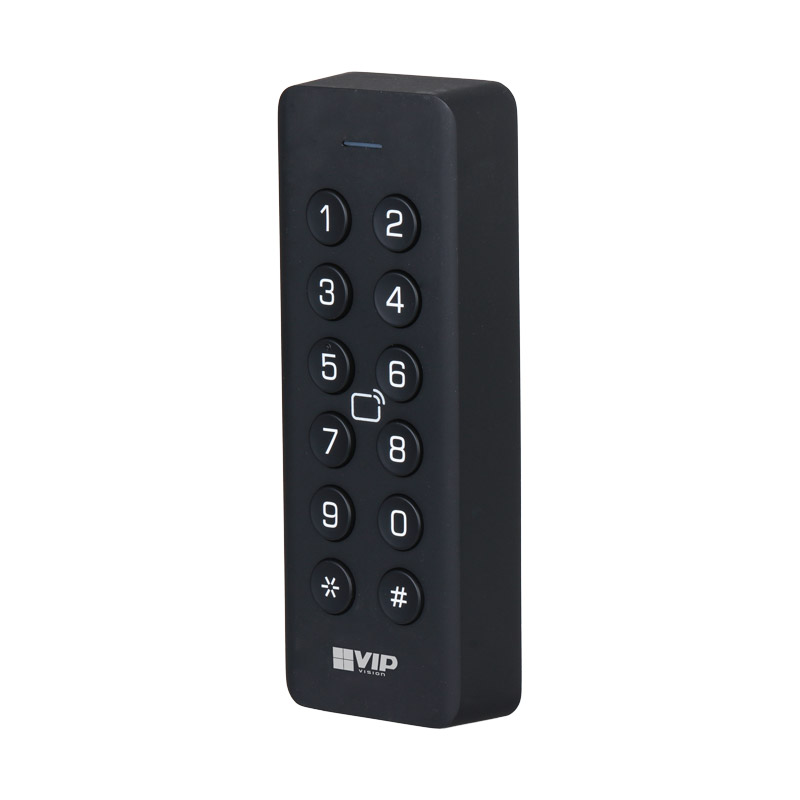

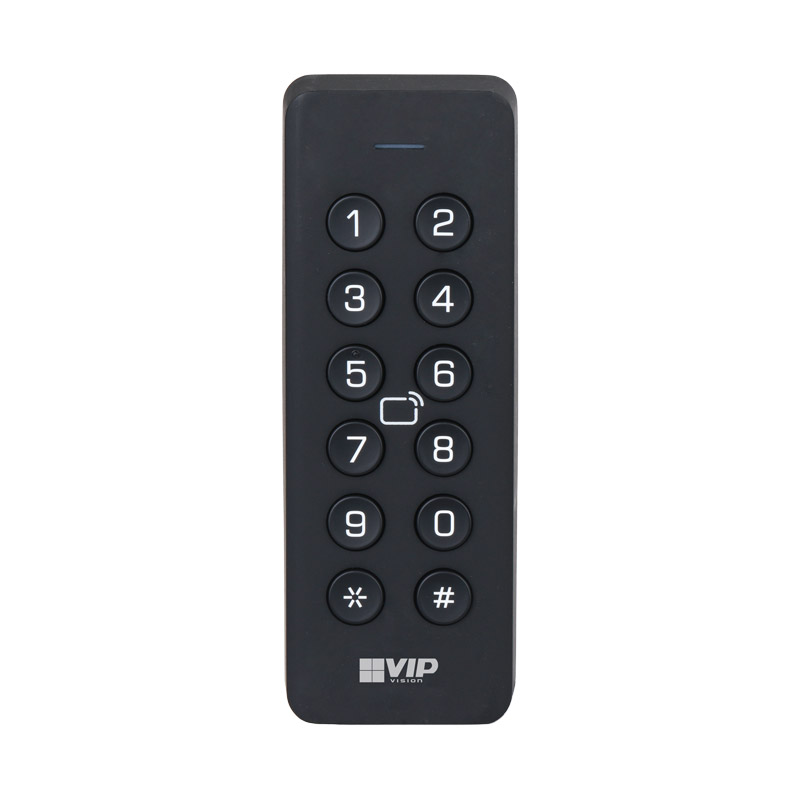

VIP Vision Access Control Card & Keypad Reader - Slimline 2

SKU AC-WRC-CK

This product is Coming Soon. Please contact us for more information.

The AC-WRC-CK reader in the AC-W Series is a slimline, surface mount card and keypad authentication reader, with durable design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.

• Card and keypad reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• RGB LED and chime for user audio/visual prompts
• Polycarbonate housing with anti-tamper alarm
• IP66 weather rated (fitted as per install guidelines)

Suggested Products

Suggested product image
VIP Vision 2-Door Web Access Controller Module
AC-WCM
Suggested product image
VIP Vision Access Control Card Reader - Slimline 2
AC-WRC-C
Suggested product image
13.56MHz NFC Proximity Keyfob (1pk)
ACKEY104M-2
Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY105

Links and Downloads

Access Control - VIP Vision Product Solution Guide (PDF) 7.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Access
Product
Card/Keypad Reader
Communication
RS-485 / Wiegand 34
RFID Format
13.56MHz (Mifare)
RFID Read Range
≤8cm
RFID Read Time
0.1s
Fingerprint Scan
-
Keypad
12 Touch Keys (0-9,*,#)
Function
Audio
Buzzer
Light
RGB LED Indicator Light
Tamper Switch
Yes
Environment
Ingress Protection
IP66 (when fitted as per product installation guidelines)
Vandal Protection
-
Power Supply
12VDC 0.5A, Consumption: ≤0.5W (Standby), ≤1.7W
Operating Conditions
-30°~+70° C / <95% RH

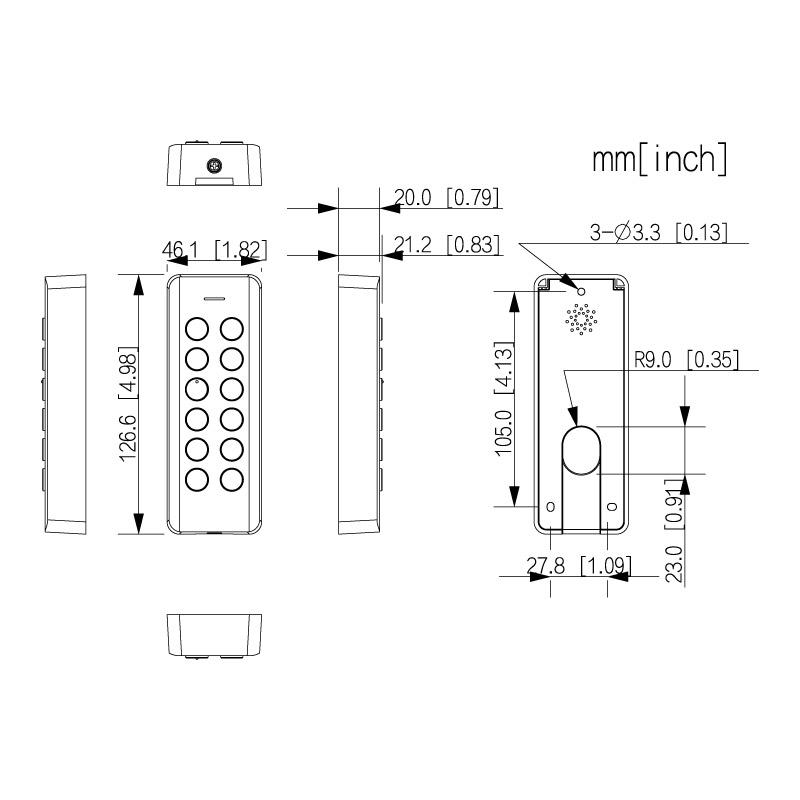

Dimensions
127 x 46 x 20mm
Net Weight
0.10kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
75 mm
Height
140 mm
Depth
50 mm
Weight
0.12 kg
