VIP Vision Access Control Card & Keypad Reader - Slimline

Brand logo
SKU AC-WRB-CK
Brand logo

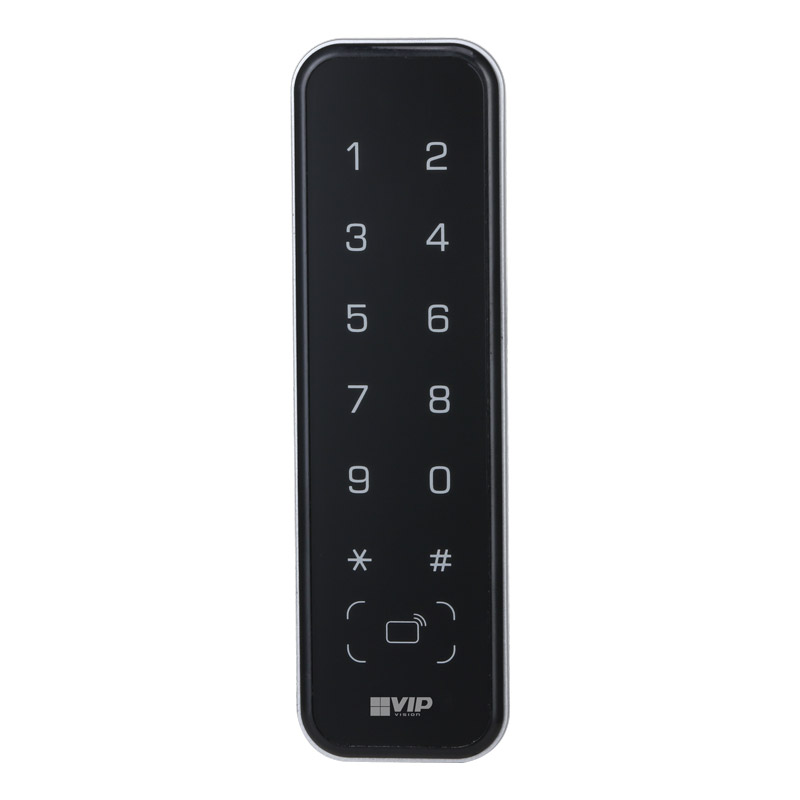

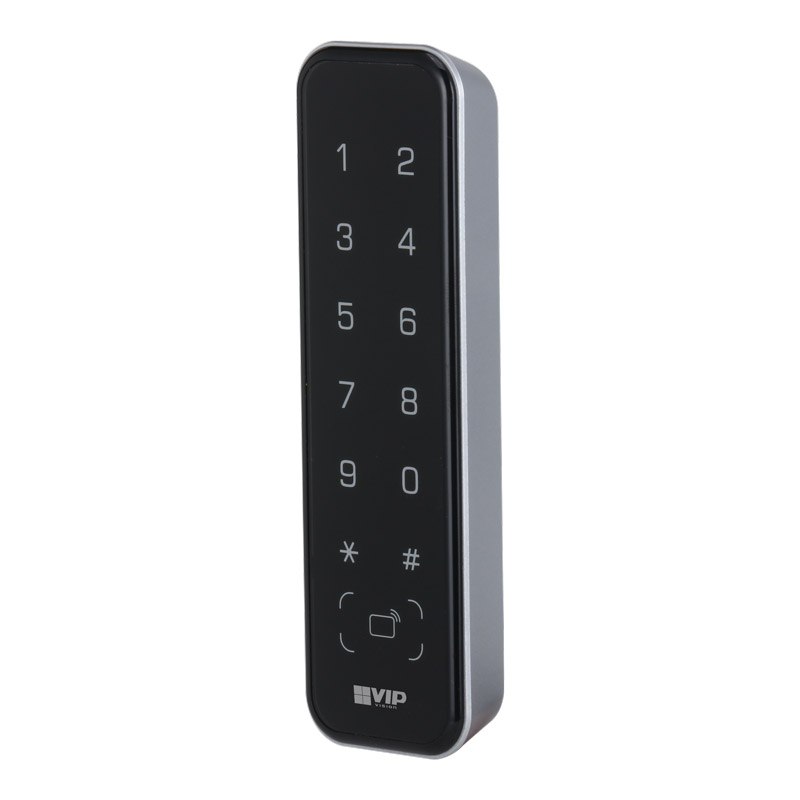

VIP Vision Access Control Card & Keypad Reader - Slimline

SKU AC-WRB-CK

This product is Coming Soon. Please contact us for more information.

The AC-WRB-CK reader in the AC-W Series is a surface mount, slimline card and keypad authentication reader, with premium design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.

• Card and keypad reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• LED and chime for user audio/visual prompts
• Anti-tamper alarm and backlit keypad
• Polycarbonate and tempered glass construction
• IP66 weather rated (fitted as per install guidelines)

Suggested Products

Suggested product image
VIP Vision 2-Door Web Access Controller Module
AC-WCM
Suggested product image
VIP Vision Access Control Card Reader - Slimline
AC-WRB-C
Suggested product image
VIP Vision Access Control Card & Bluetooth Reader - Slimline
AC-WRB-CB
Suggested product image
13.56MHz NFC Proximity Keyfob (1pk)
ACKEY104M-2
Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY105

Links and Downloads

Access Control - VIP Vision Product Solution Guide (PDF) 7.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Access
Product
Card/Keypad Reader
Communication
RS-485 / Wiegand 34
RFID Format
13.56MHz (Mifare)
RFID Read Range
≤5cm
RFID Read Time
0.1s
Fingerprint Scan
-
Keypad
12 Touch Keys (0-9,*,#)
Function
Audio
Buzzer
Light
Blue Backlight
Tamper Switch
Yes
Environment
Ingress Protection
IP66 (when fitted as per product installation guidelines)
Vandal Protection
-
Power Supply
12VDC 0.5A, Consumption: ≤0.9W (Standby), ≤1.7W
Operating Conditions
-30°~+70° C / <95% RH

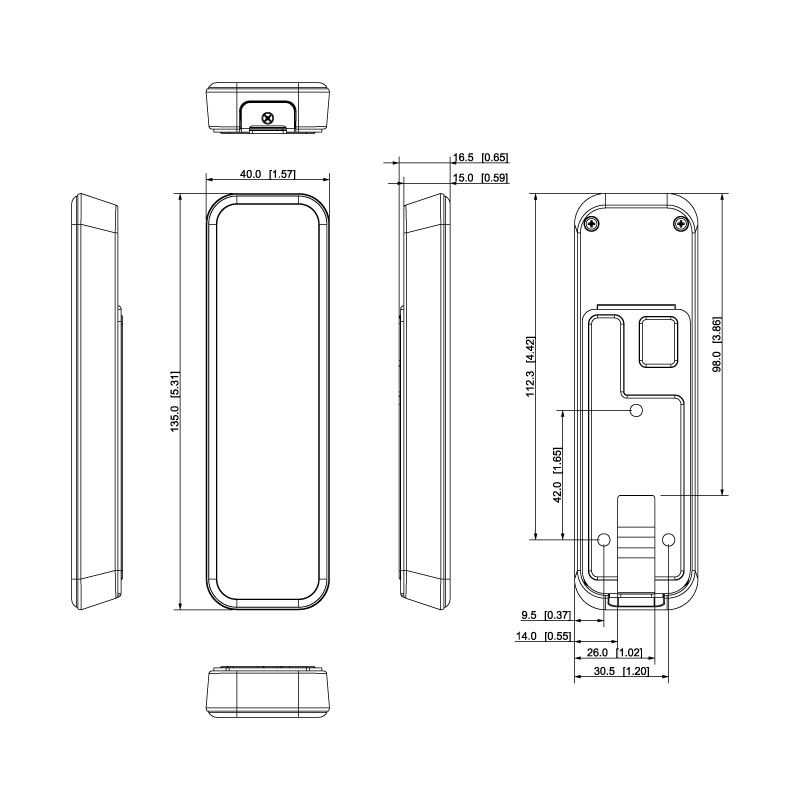

Dimensions
135 x 40 x 15mm
Net Weight
0.16kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
75 mm
Height
195 mm
Depth
55 mm
Weight
0.20 kg
