VIP Vision Access Control Card & Keypad Reader - Square

SKU AC-WRA-CK

VIP Vision Access Control Card & Keypad Reader - Square

SKU AC-WRA-CK

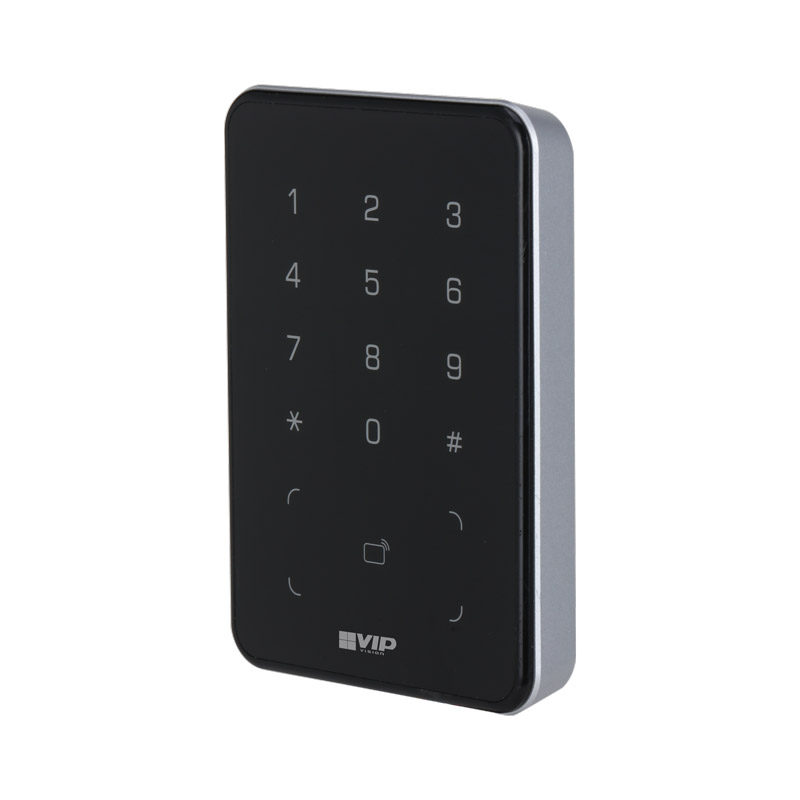

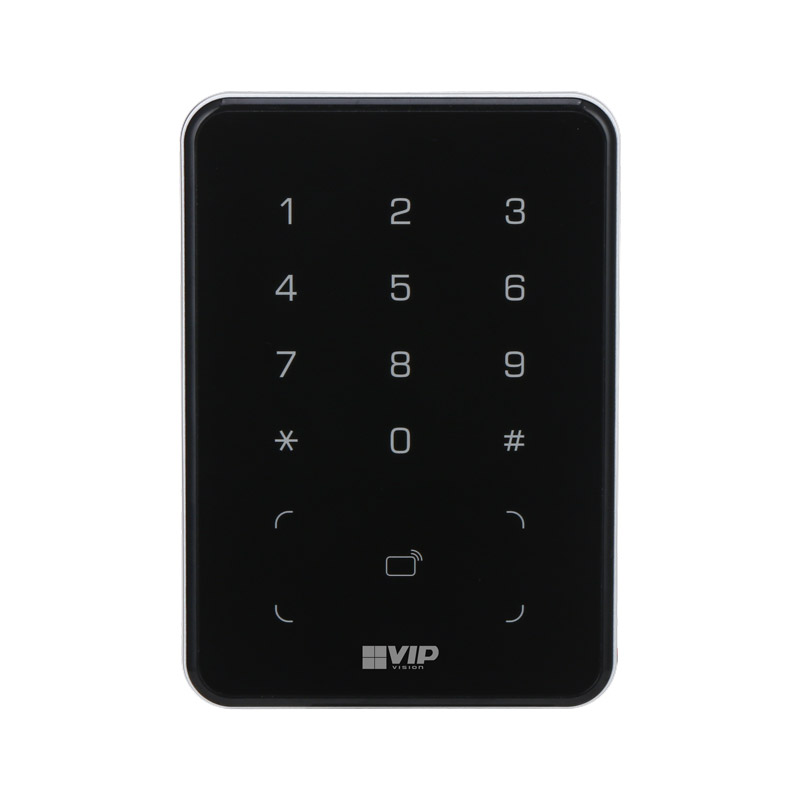

The AC-WRA-CK reader in the AC-W Series is a surface mount card and keypad authentication reader, with premium design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications.

• Card and keypad reader authentication
• Web management via controller and web browser
• RS-485 or Wiegand protocol via 13.56MHz RFID
• Reader can enroll new access cards or keyfobs
• LED and chime for user audio/visual prompts
• Anti-tamper alarm and backlit keypad
• Polycarbonate and tempered glass construction
• IP66 weather rated (fitted as per install guidelines)

Suggested Products

VIP Vision 2-Door Web Access Controller Module
AC-WCM

VIP Vision Access Control Card Reader - Square
AC-WRA-C

13.56MHz NFC Proximity Keyfob (1pk)
ACKEY104M-2

13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY105

Links and Downloads

Access Control - VIP Vision Product Solution Guide (PDF) 7.60 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Access

Product

Card/Keypad Reader

Communication

RS-485 / Wiegand 34

RFID Format

13.56MHz (Mifare)

RFID Read Range

≤5cm

RFID Read Time

0.1s

Fingerprint Scan

Keypad

12 Touch Keys (0-9,*,#)

Function

Audio

Buzzer

Light

Blue Backlight

Tamper Switch

Yes

Environment

Ingress Protection

IP66 (when fitted as per product installation guidelines)

Vandal Protection

Power Supply

12VDC 0.5A, Consumption: ≤0.9W (Standby), ≤1.7W

Operating Conditions

-30°~+70° C / <95% RH

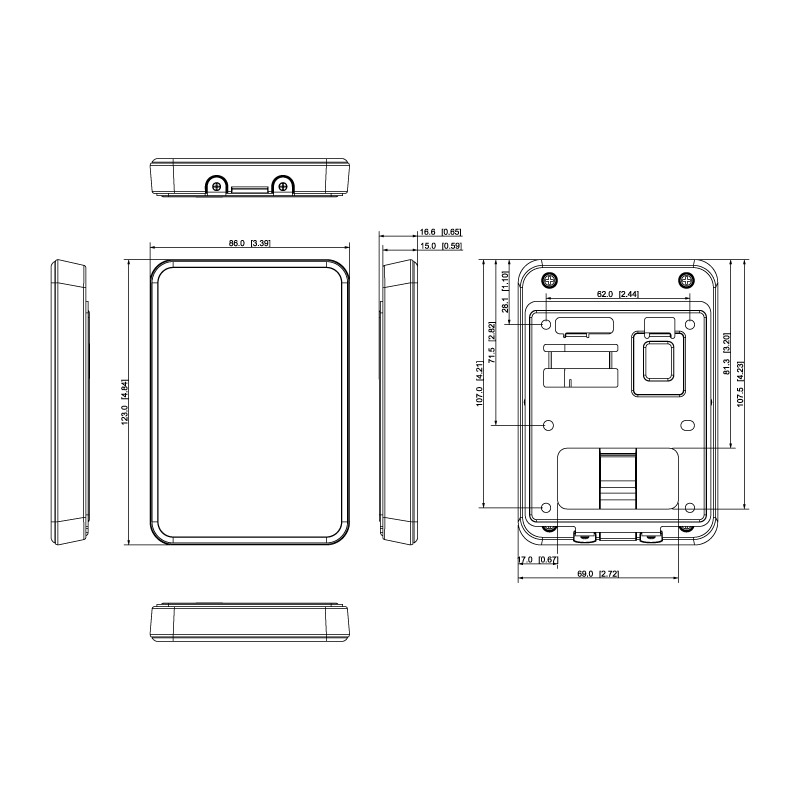

Dimensions

123 x 86 x 15mm

Net Weight

0.35kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

165 mm

Height

185 mm

Depth

75 mm

Weight

0.35 kg
