VIP Vision 2-Door PoE Access Controller Module

Brand logo
SKU AC-WCM
Brand logo

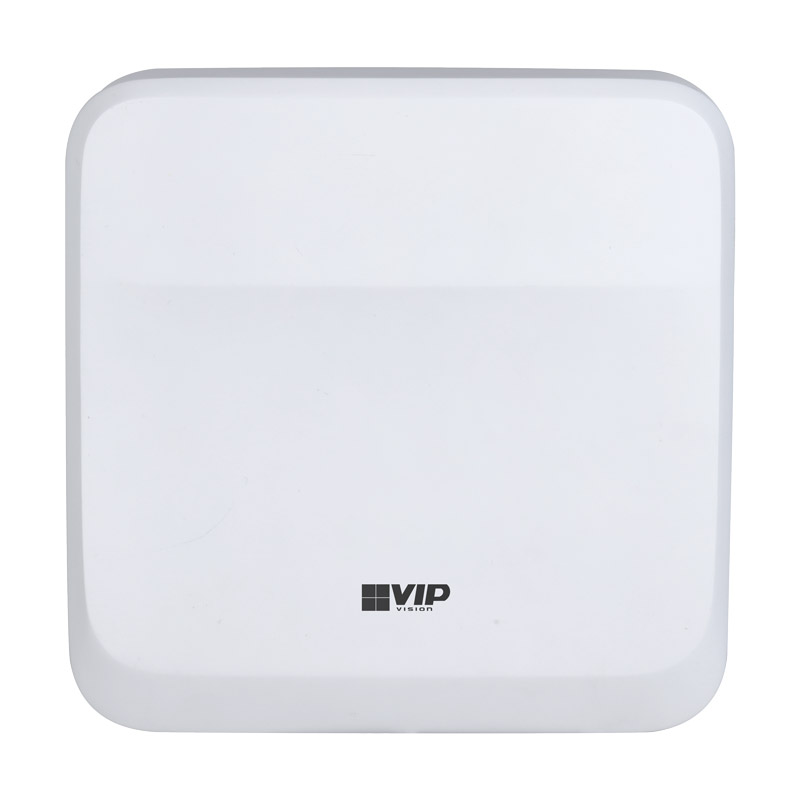

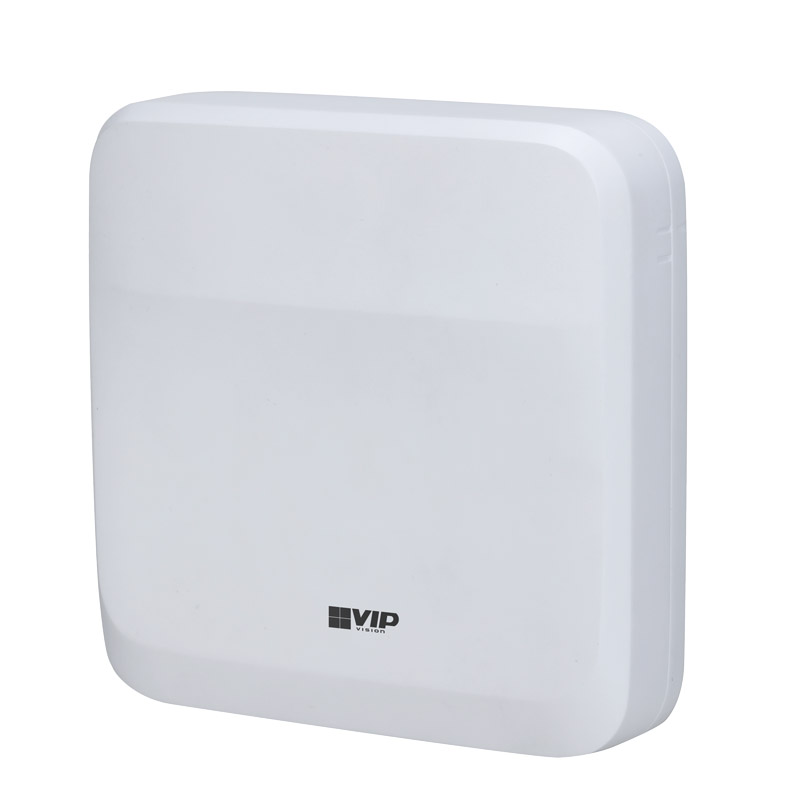

VIP Vision 2-Door PoE Access Controller Module

SKU AC-WCM

This product is Coming Soon. Please contact us for more information.

The Professional Series two-door access controller delivers powerful, flexible and scalable access management tailored for modern indoor environments. Featuring built-in web management, multi-mode control architecture and advanced authentication capabilities, it provides a reliable and future-ready solution for your next access control installation.

- Built in web server supports main & sub control modes
- Manage up to 19 sub-controllers from one main controller
- Supports up to 1,000 users, 3,000 fingerprints, 5,000 Bluetooth cards, and 300,000 event records (main control mode)
- Multiple unlock methods including card, fingerprint, password, Bluetooth, remote and combination unlock
- Advanced access functions such as multi-person unlock, anti-pass back, multi-door interlock and external alarm linkage
- Built in 12VDC lock power output with data retention during power loss

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

System
Input Ports
2 x door sensor; 2 x exit button 2 x alarm input, 1 x RJ-45, 2 x Wiegand, 3 x RS485
Output Ports
2 x Door lock, 2 x Alarm output
Main Processor
-
Memory
-
Reader Ports
2
Card Memory
5,000 (main control), 50,000 (sub control)
Event Memory
300,000
Function
Access Control
First-person, Anti-pass back, Multi-interlock, Multi-card, Global anti-passback, Global external alarm.
User Management
General, VIP, Guest, Patrol, Blocklist
Alarm Function
Door time-out, Intrusion, Tamper, Duress
Period
Support 128 groups of schedules and 128 groups of holiday periods
Network
Ethernet
RJ-45 (10/100Base-T)
Reader Interface
RS485 / Wiegand 34
Environmental
RTC
-
Battery Backup
Supports battery backup
Battery Up-time
-
Power Supply
12VDC / PoE (802.3at)
Operating Conditions
-10° ~ +55° C / Less than 95% RH / Indoors only
Housing
PC + ABS
Dimensions
186 x 186 x 58mm
Net Weight
0.99kg
Warranty (Years)
4
