Heavy-Duty Hinged Poles.
Flexible Installation.
Reliable mounting solutions for CCTV surveillance, solar-powered systems and outdoor lighting.
The VIP Vision POL-A Series combines heavy-duty Q355 steel construction with a practical hinged design, allowing equipment to be lowered for easier access and maintenance.
Available in 4m and 6m heights, each pole comes with a POL-ATC integrated anchor for use with a compatible concrete base. Optional mounting accessories are also available for permanent in-ground installations.
POL-A Series | 4m & 6m Hinged Poles
Find the Right Pole for Your Project
Heavy-duty octagonal hinged poles designed for reliable equipment mounting.
POL-A4S
4.0m Heavy-Duty Hinged Pole
A durable 4m hinged pole suitable for CCTV surveillance, solar-powered equipment and outdoor lighting applications.
- 4.0m overall height
- 1610mm hinge height
- Ø60mm top outside diameter
- Ø164mm bottom outside diameter
- Q355 steel construction
- Hot-dipped galvanised finish
- Integrated access panel
- POL-ATC anchor included
POL-A6S
6.0m Heavy-Duty Hinged Pole
A heavy-duty 6m hinged pole providing additional mounting height for surveillance, security and outdoor lighting installations.
- 6.0m overall height
- Ø60mm top outside diameter
- Ø170mm bottom outside diameter
- Q355 steel construction
- Hot-dipped galvanised finish
- 350 × 350 × 20mm base plate
- Integrated access panel
- POL-ATC anchor included
Built for Demanding Installations
Practical features that make installation, equipment access and maintenance easier.
Easy Access Hinged Design
The hinged design allows the upper section of the pole to be lowered for easier access to mounted equipment during servicing and maintenance.
Heavy-Duty Steel Construction
Manufactured from Q355 steel with a hot-dipped galvanised finish, providing durable construction for outdoor installations.
Integrated Access Panel
An integrated access panel provides convenient access to internal pole components and cabling.
Flexible Mounting Options
Choose from compatible concrete base mounting or optional in-ground anchor accessories to suit your installation.
What's Included With Your Pole?

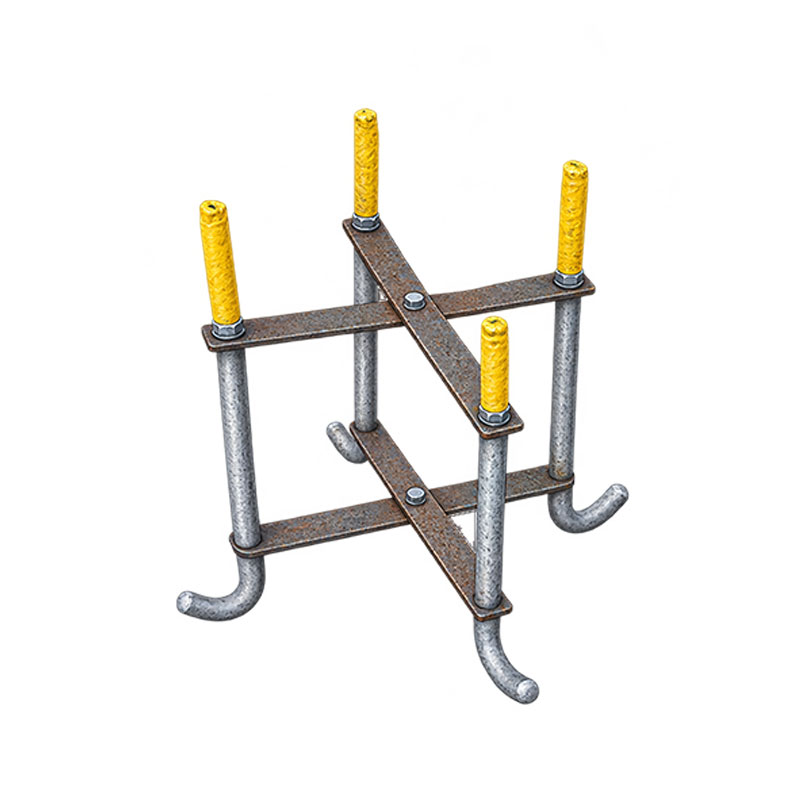

POL-ATC Heavy-Duty Integrated Anchor
Included with POL-A Series poles.
Each POL-A Series pole is supplied with a POL-ATC integrated anchor, designed to secure the pole to a compatible precast concrete base.
This mounting assembly allows the pole to be used with a suitable portable concrete base, providing flexibility for installations where permanent in-ground mounting is not required.
- Included with POL-A4S and POL-A6S poles
- Designed for compatible concrete bases
- Suitable for portable installations
- Heavy-duty mounting connection
Concrete base is not included with the pole and is sold separately.
The POL-ATC integrated anchor is included with every POL-A4S and POL-A6S pole purchase. No separate purchase is required.
Choose How You Install
Complete your installation with compatible mounting accessories for permanent or portable applications.

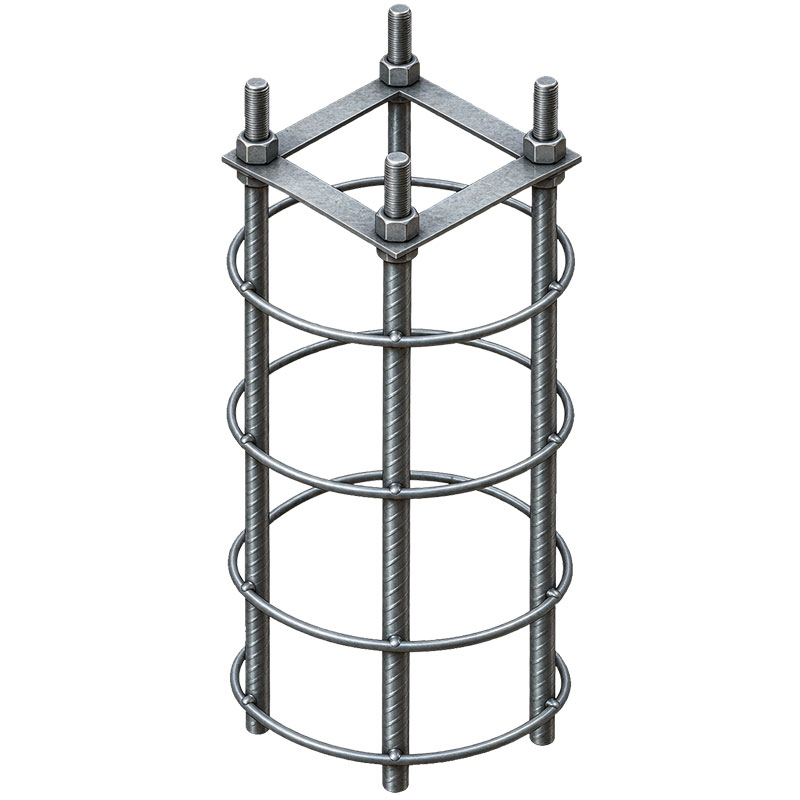

POL-ATG
Heavy-Duty In-Ground Anchor Cage
Designed for permanent in-ground installation of POL-A Series hinged poles, providing a secure mounting solution for fixed deployments.
- 1000mm anchor cage
- 4 × M24 anchor bolts
- Q355 steel construction
- Includes cage, bolt template and J-bolts
- Designed for permanent installation
This optional accessory can be added to your purchase at checkout when ordering a POL-A Series pole.
SLR-POLCONC3
1000kg Concrete Base Block
A heavy-duty precast concrete base designed for use with compatible 4m and 6m hinged poles, providing a portable mounting solution without permanent in-ground installation.
- 1000kg concrete base block
- Compatible with 4m and 6m hinged poles
- Designed for portable installations
- Suitable for use with POL-ATC anchors
- Heavy-duty precast construction
This optional accessory can be added to your purchase at checkout when ordering a POL-A Series pole.
POL-A Series Specifications
A quick comparison of the 4m and 6m models. For detailed technical information, refer to the full specifications below.
| Specification | POL-A4S | POL-A6S |
|---|---|---|
| Overall Height | 4.0m | 6.0m |
| Top Diameter | Ø60mm | |
| Bottom Diameter | Ø164mm | Ø170mm |
| Construction | Q355 Steel | |
| Finish | Hot-Dipped Galvanised | |
View Full POL-A Series Specifications
Need more technical information? View the complete POL-A Series specifications, including detailed dimensions, technical drawings and mounting information for the 4m and 6m hinged poles.
Complete Your Installation
Explore complementary surveillance and lighting solutions for your next outdoor installation.

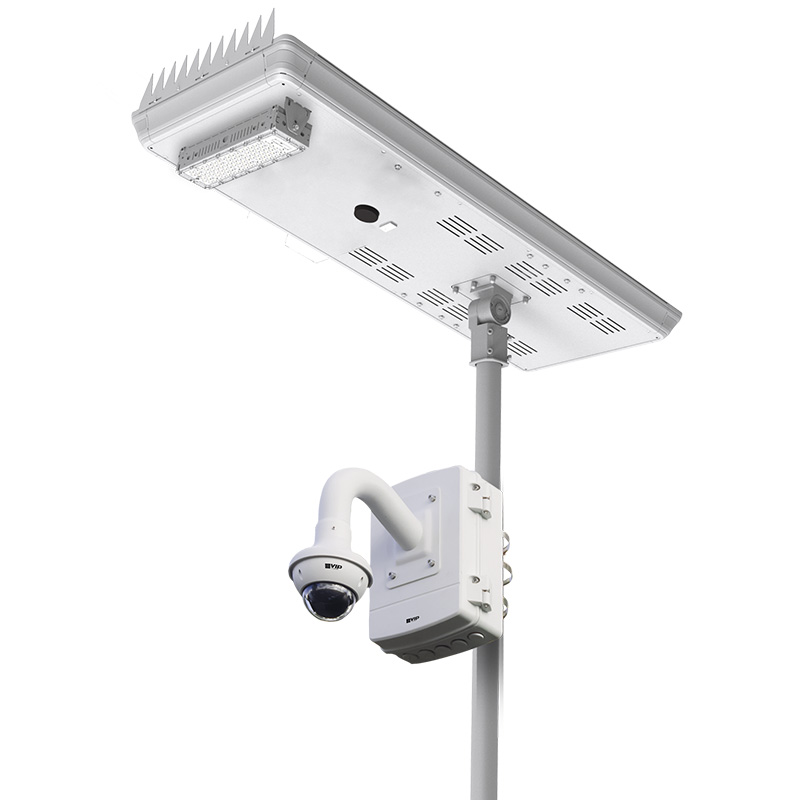

Solar Surveillance & Lighting
Explore solar-powered CCTV systems and SSL-B Series LED lighting solutions designed for outdoor locations without access to mains electricity.
Ideal for farms, construction sites, car parks, remote facilities and temporary outdoor installations.
Fixed Outdoor Lighting
Explore the LSL-B Series LED street and area lighting range, designed to deliver reliable illumination for permanent outdoor installations.
Ideal for car parks, access roads, warehouses and industrial sites.
Confirm product compatibility, mounting hardware and installation requirements before purchase. Additional accessories may be required.
Made for a Range of Applications
Versatile mounting solutions for surveillance, security and outdoor lighting.
Car Parks & Public Spaces
Warehouses & Industrial Sites
Farms & Rural Properties
Events & Showgrounds
Construction Sites
Outdoor Security & Lighting
Find the Right Pole for Your Next Project
Explore the VIP Vision POL-A Series and compatible mounting accessories, or contact the RhinoCo sales team for pricing, product information and technical assistance.
POL-ATC integrated anchor supplied with POL-A Series poles. POL-ATG in-ground anchor cages and SLR-POLCONC3 concrete bases are optional accessories sold separately. Installation must comply with applicable engineering, site and safety requirements.
