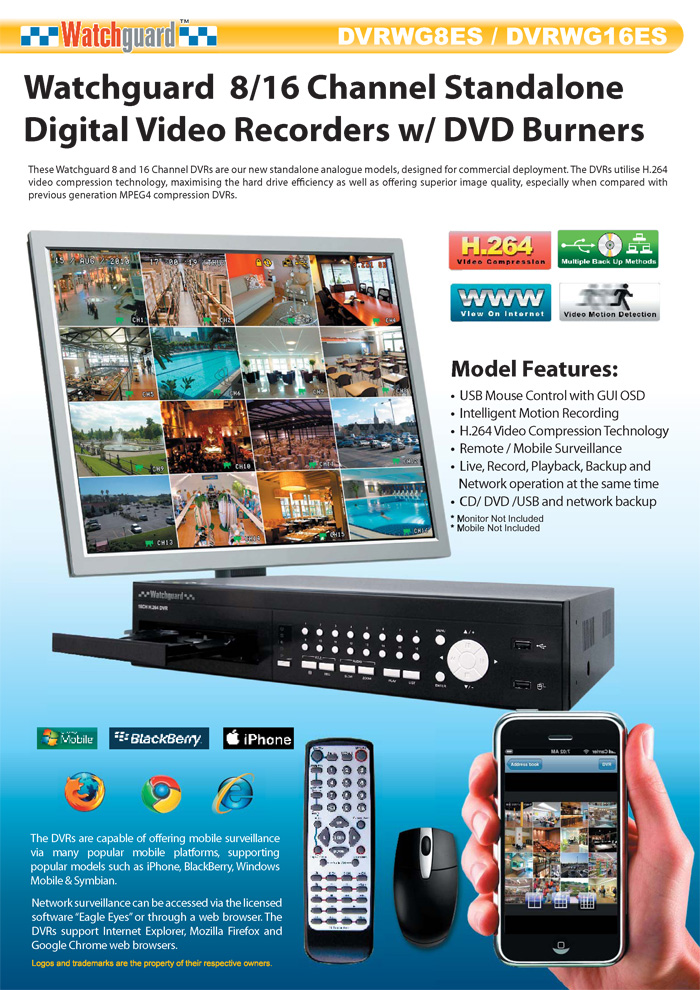

8 Channel H.264 DVR 50fps @ 704x576 w/DVD writer


8 Channel H.264 DVR 50fps @ 704x576 w/DVD writer


These Watchguard 8 and 16 Channel DVRs are our standalone analogue models, designed for commercial deployment. The DVRs utilise H.264 video compression technology, maximising the hard drive efficiency as well as offering superior image quality, especially when compared with previous generation MPEG4 compression DVRs.

• USB Mouse Control with GUI OSD
• Intelligent Motion Recording
• H.264 Video Compression Technology
• Remote Surveillance
• Live, Record, Playback, Backup and Network operation at the same time
• CD/ DVD /USB and network backup
• Mobile surveillance: via many popular mobile platforms, such as iPhone, BlackBerry, Windows Mobile & Symbian are supported to fulfill various user demands.
• Network surveillance via the licensed software “Eagle Eyes”, Internet Explorer, Mozilla Firefox or Google Chrome web browser, and QuickTime player is supported with up to 10 users’ login simultaneously

*Please note* The Remote Surveillance (Eagle Eyes) application is not developed nor distributed by RhinoCo Technology, therefore we are unable to provide service or troubleshooting for issues arising from the use of the app.

Links and Downloads


Alarm Input/Output
8 inputs, 1 output
Audio Input/Output
4 audio inputs, 2 audio output (Mono)
Backup Methods
DVD Writer (optional) / USB 2.0 flash drive / Network
Hard Drive Storage
Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB)
Max Display Framerate
Mobile Surveillance
Yes: iPhone, BlackBerry, Windows Mobile & Symbian
DC 19V
Recording Resolution
704 x 576(50fps), 704 x 288 (100fps), 352 x 288(200fps)
Video Compression
Video Input
8 Channels
Video Loop Outputs (Channels)
Video Output
VGA, Composite
Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

0 mm
0 mm
0 mm
0.00 kg
