Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (White)

Brand logo
SKU WGAP864PW2
Brand logo

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (White)

SKU WGAP864PW2

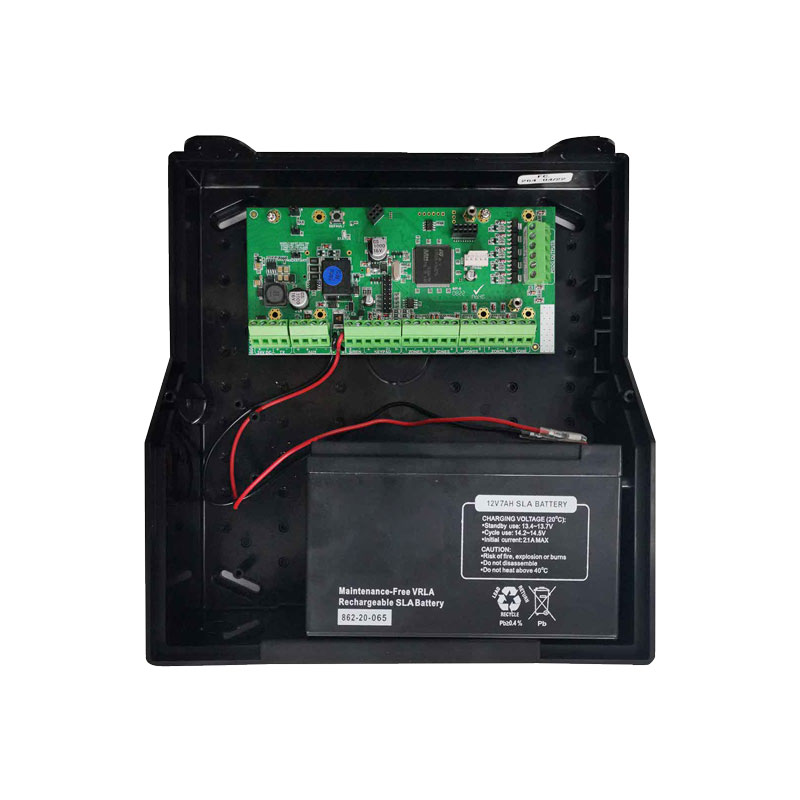

The WGAP864PW2 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to 41) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)

Product features:
▪ 8 programmable, end of line supervised zone inputs & 8 alarm partitions
▪ 5 programmable outputs on alarm panel (expandable to 41 with Wired Zone Expander module)
▪ Programmable loop response time
▪ Auto arm/disarm capability per partition & by day - program to arm/disarm at pre-determined times
▪ Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
▪ EEPROM memory retains all data in the event of a total power failure
▪ Dual reporting provides for duplicated reporting to two independent central base stations
▪ 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
▪ 128 user codes
▪ Log capable of 1000 events
▪ False alarm reduction features

**Battery sold separately**
**This module uses a 24V DC power supply, previous alarm panels used a 16V AC power supply**

Suggested Products

Suggested product image
24VDC 2.5A Switched-mode Power Supply
PS24V2.5A
Suggested product image
LCD Touch Keypad for WGAP864 Alarm System - White
WGAP864KPW
Suggested product image
Watchguard Professional 8 Zone Alarm Panel with Accessories
WGAP864PW2KIT
Suggested product image
16 Channel Wireless Receiver for WGAP864
WGAP864WRX16
Suggested product image
2 Channel Receiver for WGAP864
WGAP864WRX2
Suggested product image
Programming USB Cable For WGAP864 Alarm Panel
WGAPCABLEUSB

Links and Downloads

Specifications

Monitoring Service
No (Optional Phone Reporting Module)
Partitioning
8 partitions
Remote Programming
No (Optional Phone Programming Module)
Sensors
Wired
Zones
8 expandable to 64
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
270 mm
Height
105 mm
Depth
388 mm
Weight
3.94 kg
