Code WGAP816

Overview

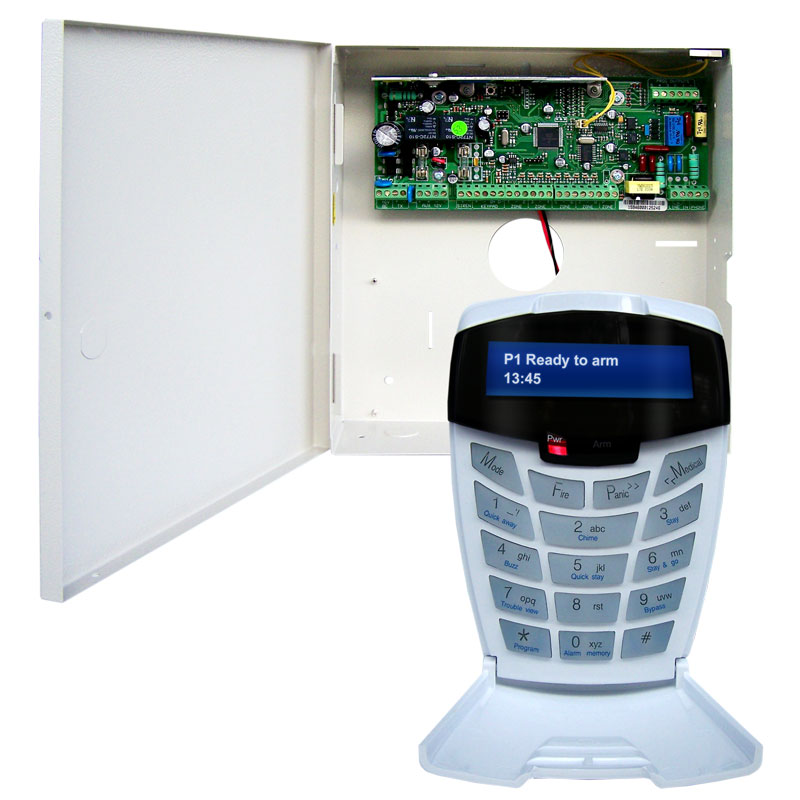

The WGAP816 is a versatile, microprocessor-based, fully featured 8/16 Zone alarm panel, which has two partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to seven) program able outputs that may be programed to perform various trigger/switching functions.

Product Features:
- 8 programmable end-of-line supervised zone inputs or 16 zone with zone doubling features
- 2 Partitions, 32 user codes, 500 event log
- Five programmable outputs on alarm panel. Expandable to seven when using Wired Zone Expander module
- Programmable loop response time
- Auto arm/disarm capability per partition and by day of the week. The panel can be programmed to arm/disarm at a pre-determined time
- Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
- Fully programmable digital telephone communicator that supports most industry standard formats.
- Non volatile EEPROM memory retains all program and event log data in the event of a total power failure
- Excellent protection against lighting (provided by specialist “zap tracking” and transient suppressors)
- Fax defeat/answering machine override
- Dual reporting provides for duplicated reporting to two independent central base stations
- 3 quick arm modes
- Away
- Stay with no exit delay
- Stay with exit delay
- Dynamic battery self test
- Low battery cut out circuit
- False alarm reduction features

Links and Downloads

CE / RCM Certificate

RoHS Certificate

Product Brochure

Installation Manual

User Manual

Shipping Weight and Dimensions includes product packaging
