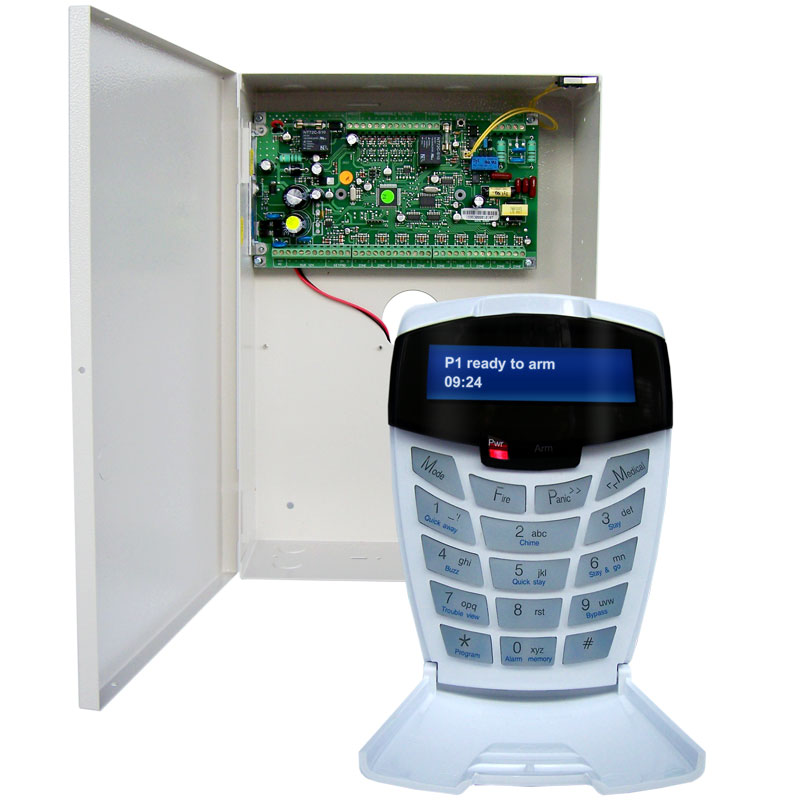

The WGAP1632 is a versatile, microprocessor-based sixteen-zone Alarm Panel with zone doubling feature or optional zone expandable module. There are eight partitions and the panel can be expanded to monitor thirty-two burglary zones through the use of a wired zone expander. Most features are optional and may be programmed directly through the LCD Alpha-numeric keypad. There is a dedicated Panic zone, monitored siren output, auxiliary power outputs and eight (expandable to twelve) programmable outputs which may be programmed to perform various trigger/switching functions.

- 8 Partitions, 250 user codes, 500 event log
- Programmable loop response time
- RS485 keypad bus supports two 8-zone expander modules, one remote receiver, up to 16 keypads and GSM Communicator
- 16 programmable, end-of-line supervised zone inputs
- Expandable to 32 zones via keypad zones, zone expander modules, zone doubling or wireless expansion
- Optional tamper reporting per zone using double end-of-line resistors (12k and 4k7)
- Auto arm/disarm capability per partition and by day of the week. The panel can be programmed to arm/disarm at a predetermined time
- 8 programmable outputs on Alarm Panel. Expandable to 12 when using Wired Zone Expander module
- Non-volatile EEPROM memory retains all program and even log data in the event of a total power failure.
- Event log, date and time stamped (approx. 700 events - exact number of events is dependant on the timing of the events)
- Up and download using Windows based software, either directly via RS232 or remotely using a modem
- Excellent protection against lightning (provided by specialised “zap tracking” and transient suppressors)
- Fax defeat/ answering machine override
- Dual reporting provides for duplicated reporting to two independent central base stations – or one base station and a cellphone
- Support for secure dial-in functionality using any DTMF phone
- False alarm reduction features
- Optional voice module for voice reporting and DTMF,voice-prompted remote-controlled menu
- Dynamic battery self test
