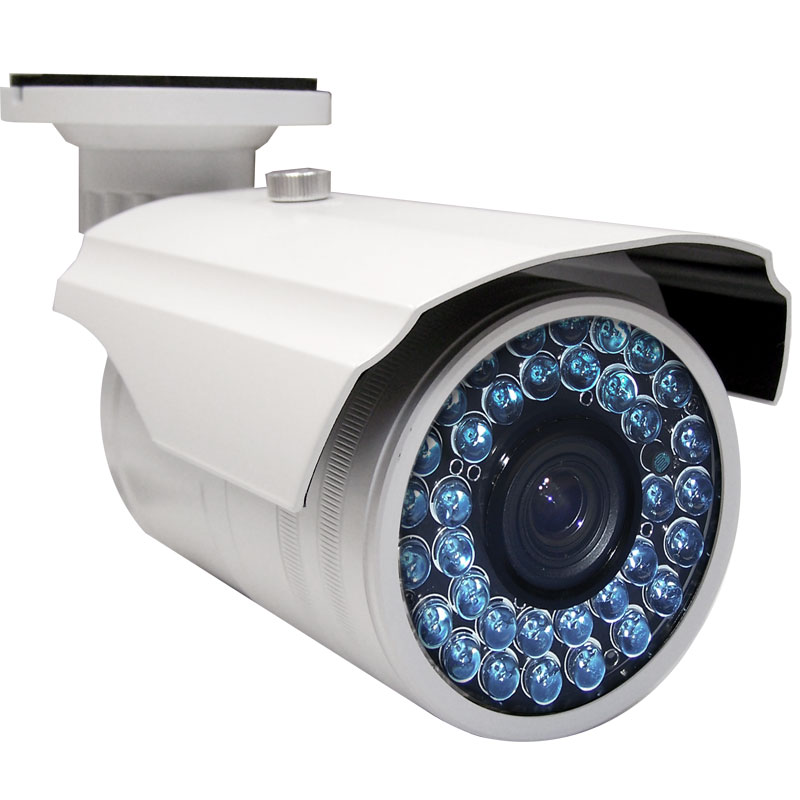

Manufacturer 540TVL 1/3" Day/Night Varifocal 50M IR Camera

Code VSWVF50MIR9-22 Available in Australia United Kingdom Italy

Click an image to view it fullsize.
Click here to download a ZIP file of all images.

This Vandal-proof IR camera has a high quality 1/3" Sony Super HAD CCD image sensor and a 540TVL resolution. It has 36 IR LEDs, making it ideal for use in day and night applications, and the IP55 rated vandal/water proof housing allows it to be used for indoor or outdoor purposes. The camera has an indoor IR range of 50M, and an outdoor range of 30M. The fully articulated bracket allows for 360° rotation when positioning the camera, making it ideal for a multitude of versatile applications.

Weights and Dimensions

Width 270 mm
Height 210 mm
Depth 110 mm
Weight 1.30 kg

Additional Specifications

Image Sensor 1/3" Sony Super HAD CCD
Horizontal Resolution (TVL) 540
Lens Focal Length (mm) 9 ~ 22
IR Range (Metres) 50
Power 12VDC
Housing IP Rating 65
Housing Style Body
