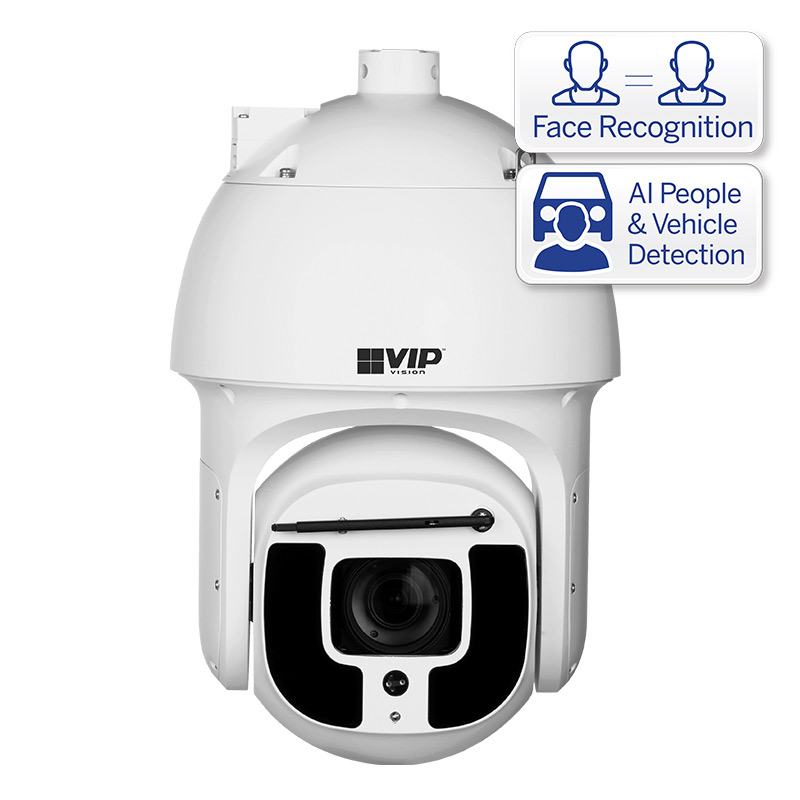

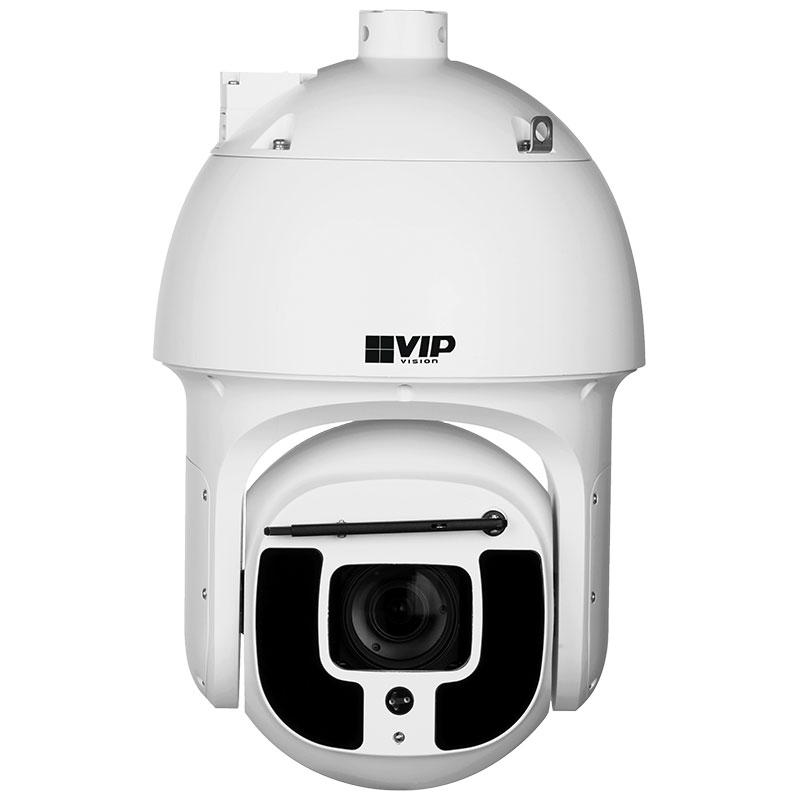

Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome

Brand logo
SKU VSIPPTZ-8IRU-I2
Brand logo

Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome

SKU VSIPPTZ-8IRU-I2

The VSIPPTZ-8IRU-I2 Ultimate AI Series PTZ offers the best in camera performance & mobility with machine-learning AI features that deliver an intelligent surveillance experience.

To provide the best surveillance performance, camera features from the VSIPPTZ-8IRU-I2 include 4K resolution image capture in real-time 25fps, incredible 40x lossless optical zoom and exceptional colour image quality in low-light.

This AI camera features on-board Face Recognition, with database support for up to 10,000 faces for real-time face capture and comparison. Using AI algorithms, the camera can also distinguish vehicles & people from other motion events and use auto-tracking to intelligently follow subjects.

Camera features:
• Stream up to Ultra HD 8.0MP (3840 x 2160) at 25fps
• 40x Motorised Varifocal lens (64 ~ 2.0° horizontal viewing angles)
• Face capture & recognition; person & vehicle detection (perimeter protection)
• Auto tracking subjects with vehicle/people detection via AI
• Up to 500m infrared distance in total darkness; IR & lens wiper
• Exceptional low light colour performance; min. illumination of 0.002lx
• Endless 360° pan; -30° ~ +90° tilt; electronic image stabilisation
• MicroSD card slot for recording up to 256GB
• Audio, alarm and video interface input/output
• Supports power via Hi-PoE (IEEE802.1x)
• IP67 weather resistant housing for external use

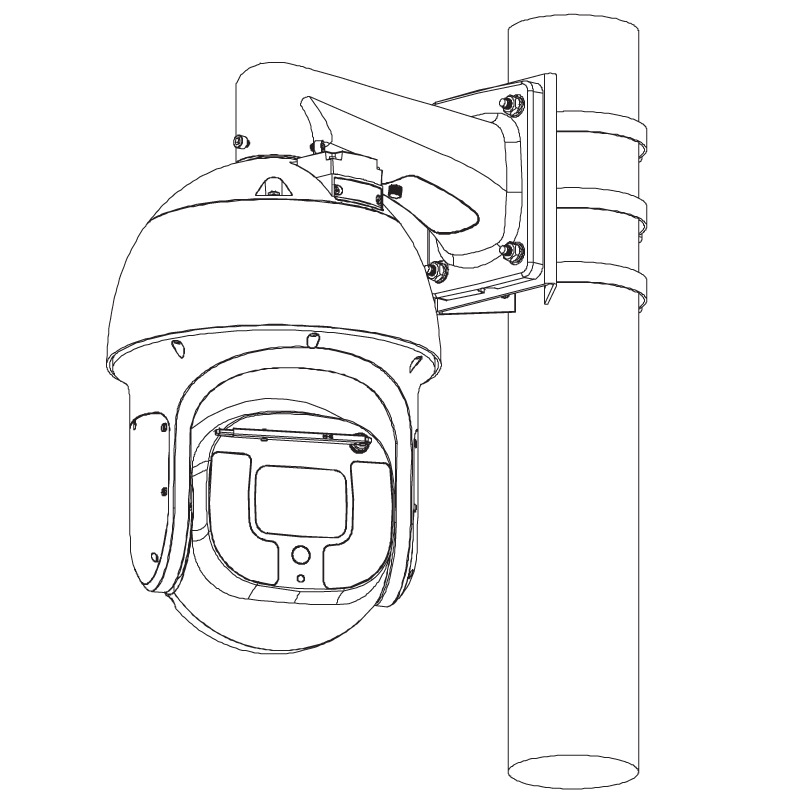

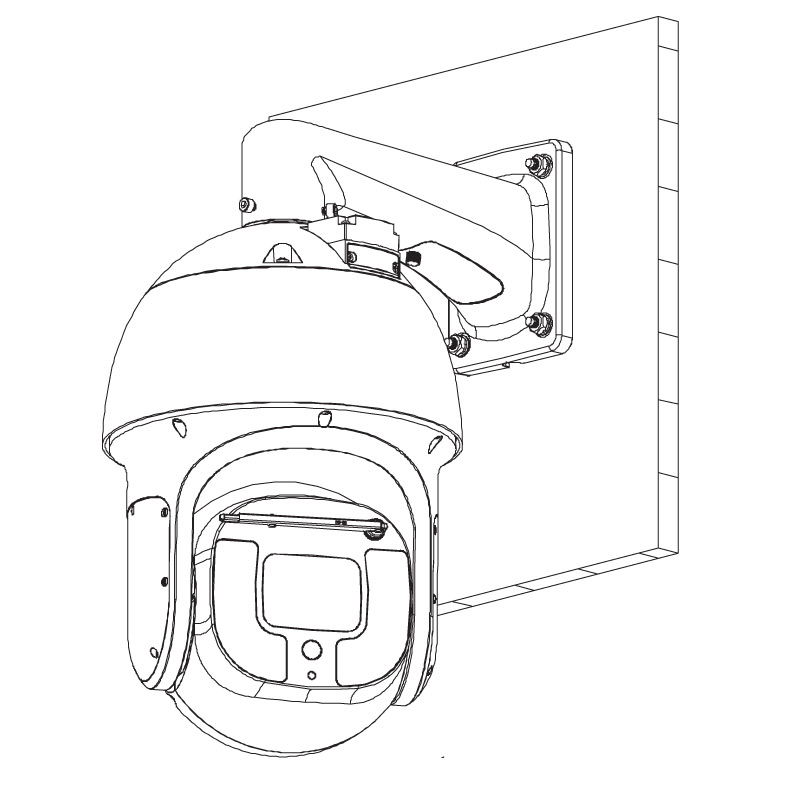

This PTZ dome camera comes standard with a right angle bracket and AC power supply.

Links and Downloads

Specifications

Camera
Image Sensor
1/1.8" 8.0MP STARVIS™ CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
2GB / 8GB
Min Illumination
0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 55dB
Infrared System
10 x Infrared LED, 450m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris
Field of View
Horizontal: 64.0° ~ 2.0° (40x Optical Zoom)
Focus
Auto / Manual / 1m Min. Focus Distance
DORI
Detect (25px/m)
4400m
Observe (63px/m)
1740m
Recognise (125px/m)
880m
Identify (250px/m)
440m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -30 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 200°/s; Tilt: 120°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265: 256kbps ~10240Kbps - H.264: 512K ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180°
Artificial Intelligence
Face Recognition
Supports database up to 10,000 face images
Face Capture
Support
Perimeter Protection
Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75Ω)
Audio Interface
1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2
Alarm Interface
7 Inputs / 2 Outputs
RS485
Yes
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<48W
Operating Conditions
-40° ~ +70° C / Less than 90% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Ultimate AI Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: -30° ~ 90° ; Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø262mm x 415.6mm
Net Weight
10kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
262 mm
Height
415 mm
Depth
262 mm
Weight
12.00 kg
