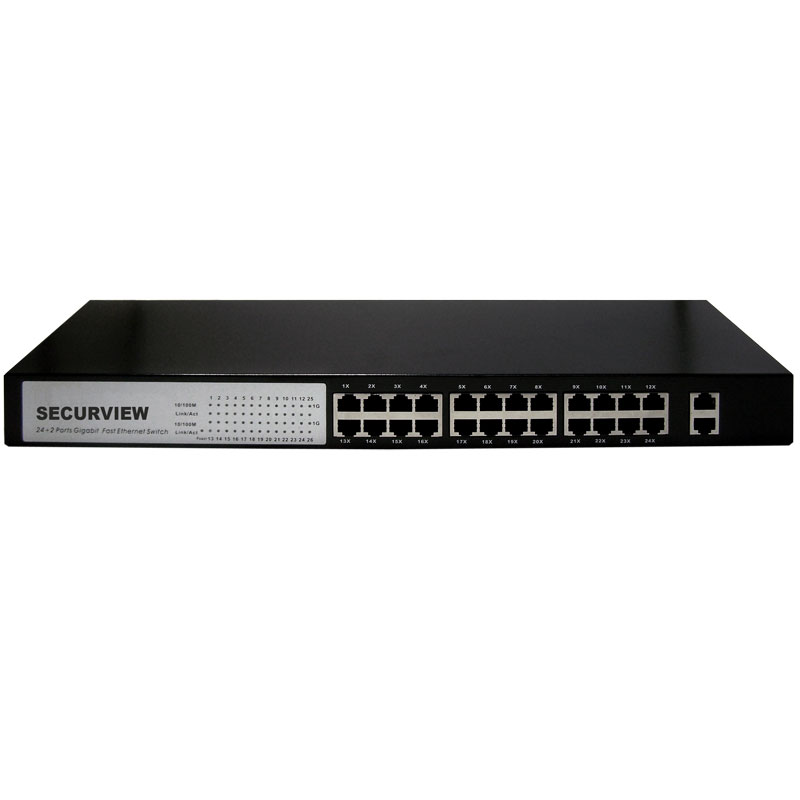

Manufacturer 24 Port Ethernet + 2 Port Gigabit Switch

Code VS24-2PORTSWITCH Available in Australia

Click an image to view it fullsize.
Click here to download a ZIP file of all images.

Overview
Specifications
Videos
Links and Downloads
Find a Reseller

This 24 + 2 Ethernet/Gigabit Switch provides 24 x 10/100M Ethernet ports and 2 x 10/100/1000M Gigabit ports. The unit provides superior overall performance and is simple to install.

- Power input: 160-240VAC, 50/60Hz
- Built-in universal power supply
- Forwarding Rate: 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps:1488000pp
- UTP port supports auto-negotiation function, automatically adjusts the transmission and transfer rate
- Supports MAC address self-learning
- 19" Rackmountable Case
- LED Indicators

Weights and Dimensions

Width	0 mm
Height	0 mm
Depth	0 mm
Weight	0.00 kg

Additional Specifications

Backplane Bandwidth	8.8Gbps
Dimensions	444(W) x 44(H) x 141(D)
Forwarding Rate	10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps;
Switching Capacity	12.8Gbps
Ethernet Ports	24 x 10/100Mbps/2 x 10/100/1000Mbps

CE Certificate

RoHS Certificate

Product Brochure (PDF)
