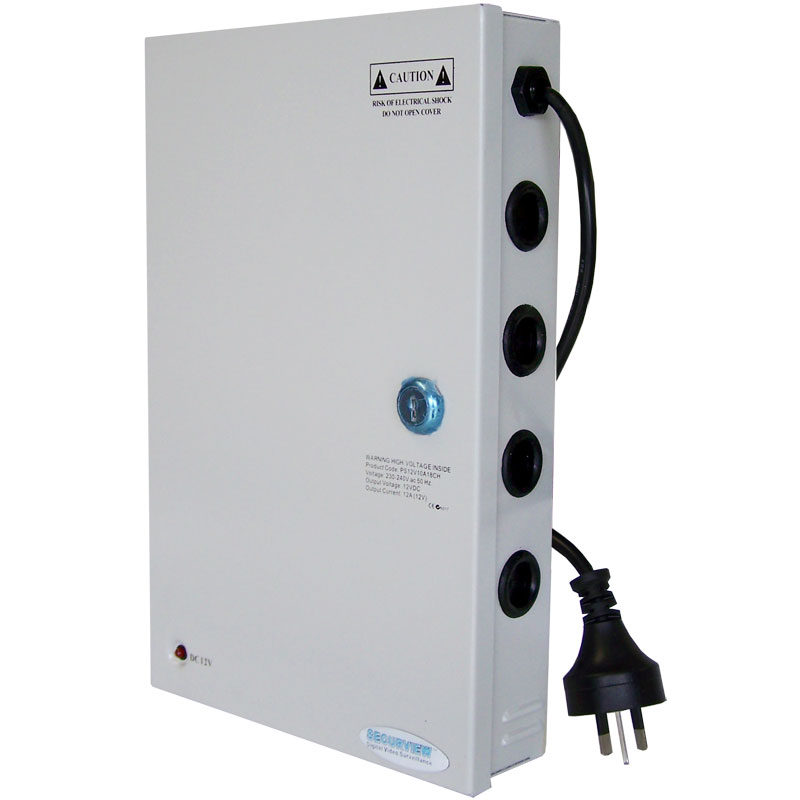

Manufacturer 12VDC 9Amp 18 Output CCTV Power Supply

Code PS12V10A18CH Available in Australia United Kingdom Italy

Click an image to view it fullsize.
Click here to download a ZIP file of all images.

Overview
Specifications
Videos
Links and Downloads
Find a Reseller

- Outputs can be connected parallel for connecting cameras with >500mA draw
- Not suitable for use outdoors
- Efficient compact design

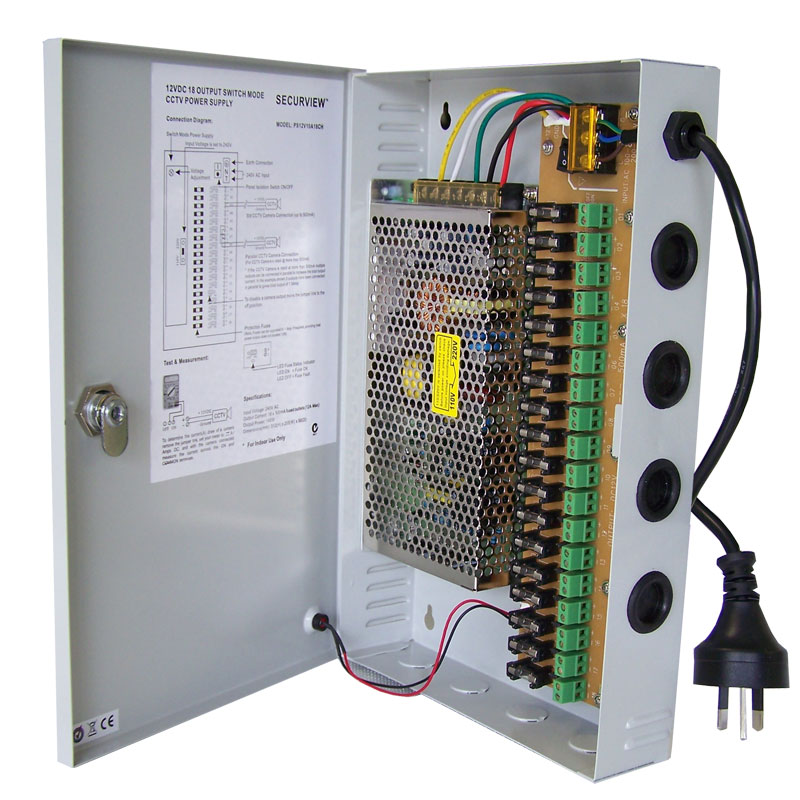

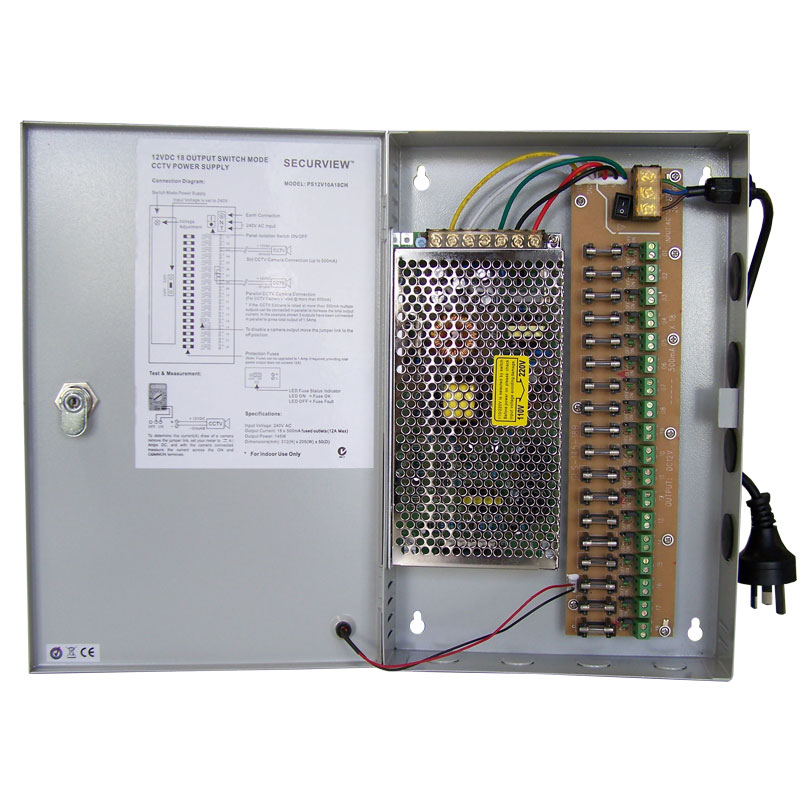

- 18 individual 500mA fused outputs
- Lockable metal housing
- Output Power: 145W
- Input Voltage: 240V AC
- Output Current: 18 x 500mA fused outputs
(9Amp Continuous-10Amp Peak)
- Dimensions(mm): 312(H) x 205(W) x 50(D)

Weights and Dimensions

Width	380 mm
Height	220 mm
Depth	70 mm
Weight	3.00 kg

Additional Specifications

Output Power	145W
Input Voltage	240V AC
Output Current	18 x 500mA fused outputs (10A max)
Dimensions(mm)	312(H) x 205(W) x 50(D)
