 16 Channel H.264 DVR 100fps @ 704x576
Code DVRWG16ES Available in
 Australia

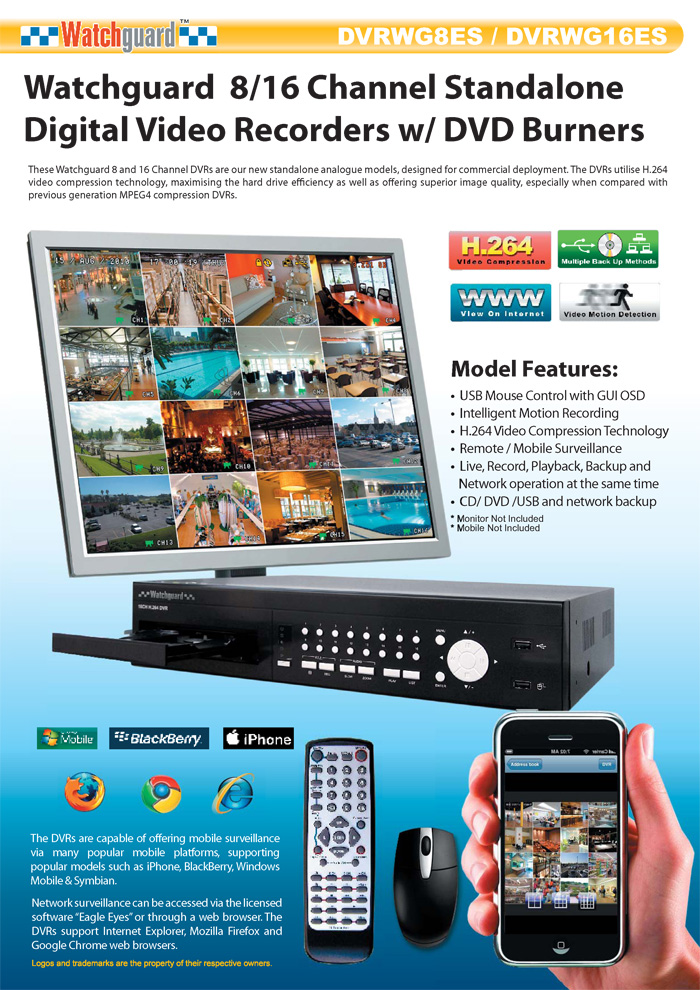

These Watchguard 8 and 16 Channel DVRs are our new standalone analogue models, designed for commercial deployment. The DVRs utilise H.264 video compression technology, maximising the hard drive efficiency as well as offering superior image quality, especially when compared with previous generation MPEG4 compression DVRs.
• USB Mouse Control with GUI OSD
• Intelligent Motion Recording
• H.264 Video Compression Technology
• Remote Surveillance
• Live, Record, Playback, Backup and Network operation at the same time
• CD/ DVD /USB and network backup
• Mobile surveillance: via many popular mobile platforms, such as iPhone, BlackBerry, Windows Mobile & Symbian are supported to fulfill various user demands.
• Network surveillance via the licensed software “Eagle Eyes”, Internet Explorer, Mozilla Firefox or Google Chrome web browser, and QuickTime player is supported with up to 10 users’ login simultaneously
*Please note* The Remote Surveillance (Eagle Eyes) application is not developed nor distributed by RhinoCo Technology, therefore we are unable to provide service or troubleshooting for issues arising from the use of the app.
Weights and Dimensions
| Width |
540 mm |
| Height |
420 mm |
| Depth |
200 mm |
| Weight |
6.00 kg |
Additional Specifications
| Alarm Input/Output |
16 inputs, 1 output |
| Audio Input/Output |
4 audio inputs, 2 audio output (Mono) |
| Backup Methods |
DVD Writer (optional) / USB 2.0 flash drive / Network |
| Dimensions |
432(W) x 90(H) x 326(D)mm |
| Hard Drive Storage |
Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB) |
| Mobile Surveillance |
Yes: iPhone, BlackBerry, Windows Mobile & Symbian |
| Power |
DC 19V |
| Recording Resolution |
704 x 576(100fps), 704 x 288 (200fps), 352 x 288(400fps) |
| Video Compression |
H.264 |
| Video Loop Outputs |
16 channels (Composite video signal 1 Vp-p 75 BNC) |
| Video Input |
16 Channels |
| Max Display Framerate |
400 fps |
