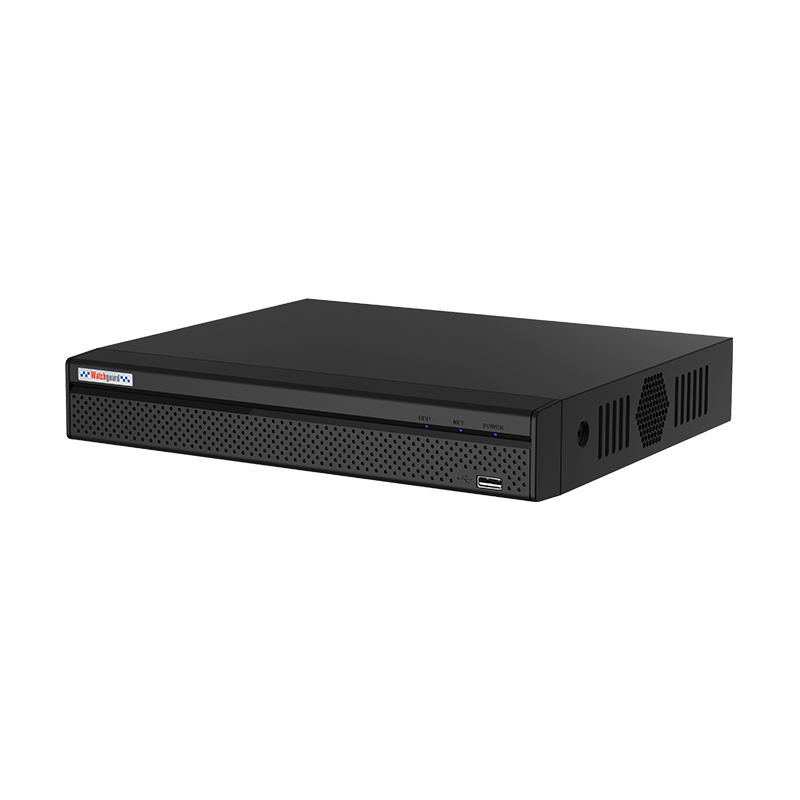

Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

Brand logo
SKU CVR16COM3
Brand logo

Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder

SKU CVR16COM3

The Watchguard Compact Series delivers Ultra HD surveillance with AI over your existing coaxial cable. DVRs in the range feature great cross compatibility, enabling you to upgrade cameras you’re not happy with, keep existing cameras you do like, and add AI alerts to improve your security experience. This makes them perfect for partial CCTV upgrades or upgrades on a budget. Monitor your home or business and keep all that you love safe with Watchguard Compact Series HDCVI DVRs.

Product features:

• Record up to 8.0MP (3840 x 2160) at 7fps (HDCVI)
• Supports analogue, HDTVI and AHD camera inputs
• Supports additional IP channels* via the network up to
8.0MP / 4K with up to 128Mbps incoming bandwidth
• 1 x HDD bays for up to 16TB of total footage storage
• AI detection to identify people & vehicles with smart
motion detection (SMD+) & perimeter protection
• Identify people for security & business intelligence with

*Addition of IP Cameras beyond 16 channels disables the DVR's AI / IVS functions.
**IP cameras with built-in AI cannot use AI functions on HDCVI DVRs.

Links and Downloads

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux

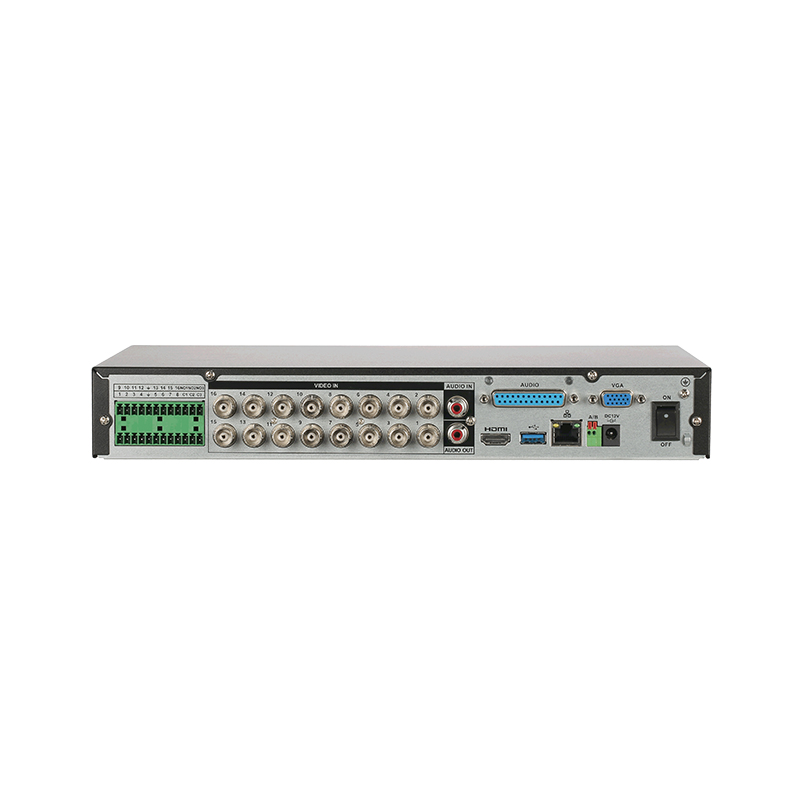

Video Input
16 channel BNC
Audio In/Out
16 input / 1 output (RCA)
Two-way Talk
Reuse channel 1 audio input/output
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Analogue / IP
Coax Input Support
16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
IP Input Support
16 channels
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720
Display Split
1/4/8/9/16 (36 with IP extension mode enabled)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)
Frame Rate (Sub)
960H (1 ~15fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt
Perimeter Protection
Performance (Perimeter Protection)
2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
16 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
16 channel input / 3 relay output
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback Sync
1/4/9/16
Search Modes
Time /Date, Alarm, Motion detection and Exact search (to the second), smart search
Backup Modes
USB Device / Network
Network
Ethernet
1x RJ-45 port (1000MB)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Storage
Internal HDD
1 x SATA port, up to 16TB, max. 16TB HDD capacity
USB Interface
2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
Auxiliary Inputs
1 x RS485 port
Environment
Power Supply
12VDC / 3A
Power Consumption
<15W (without HDD)
Operating Environment
-10°C ~ 55°C / 10% ~ 90% RH
Rackmountable
No
Rackmount Units
N/A

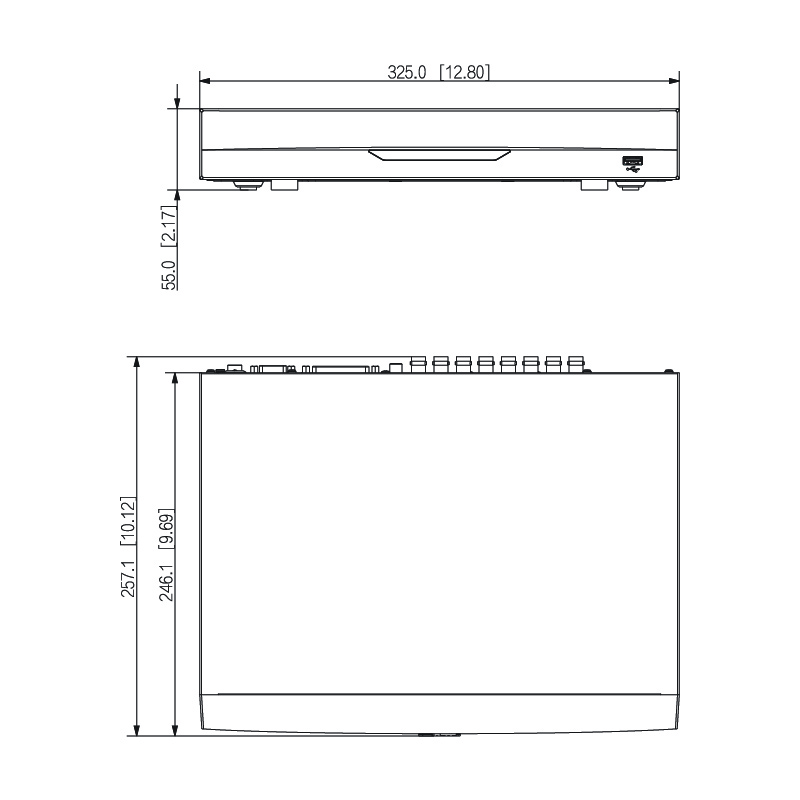

Dimensions
325mm x 257mm x 55mm (1U)
Weight
1.5kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
117 mm
Height
308 mm
Depth
372 mm
Weight
2.20 kg
